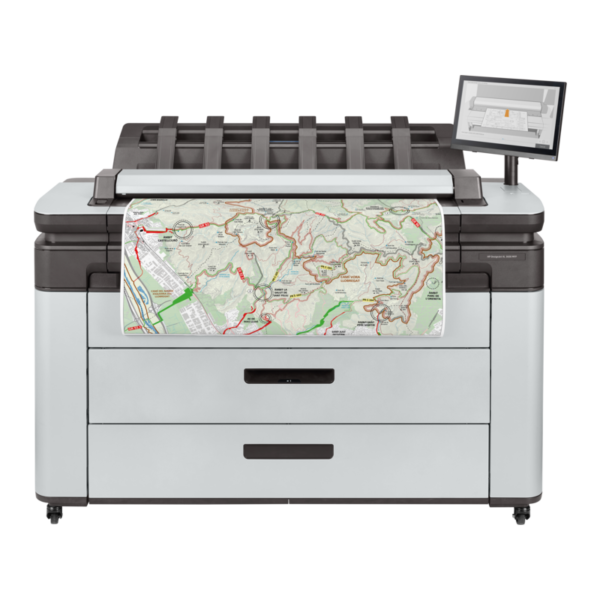

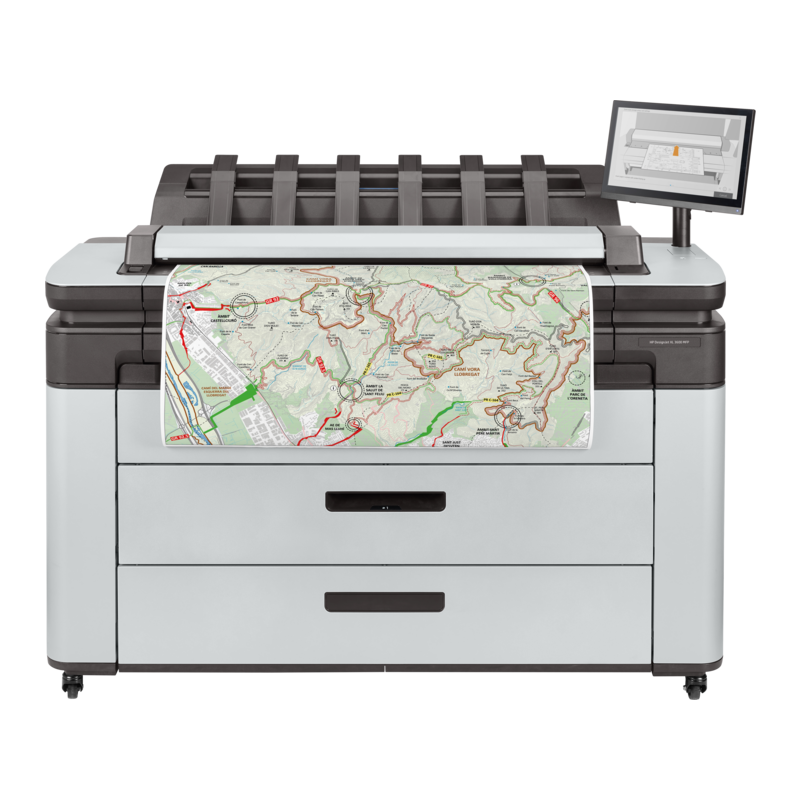

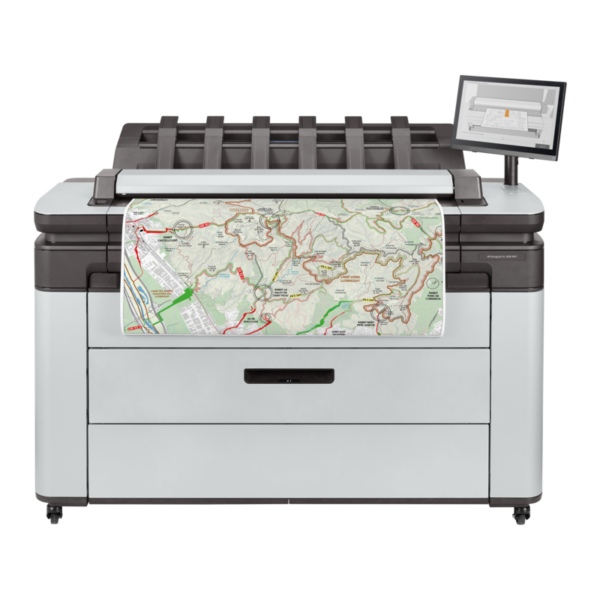

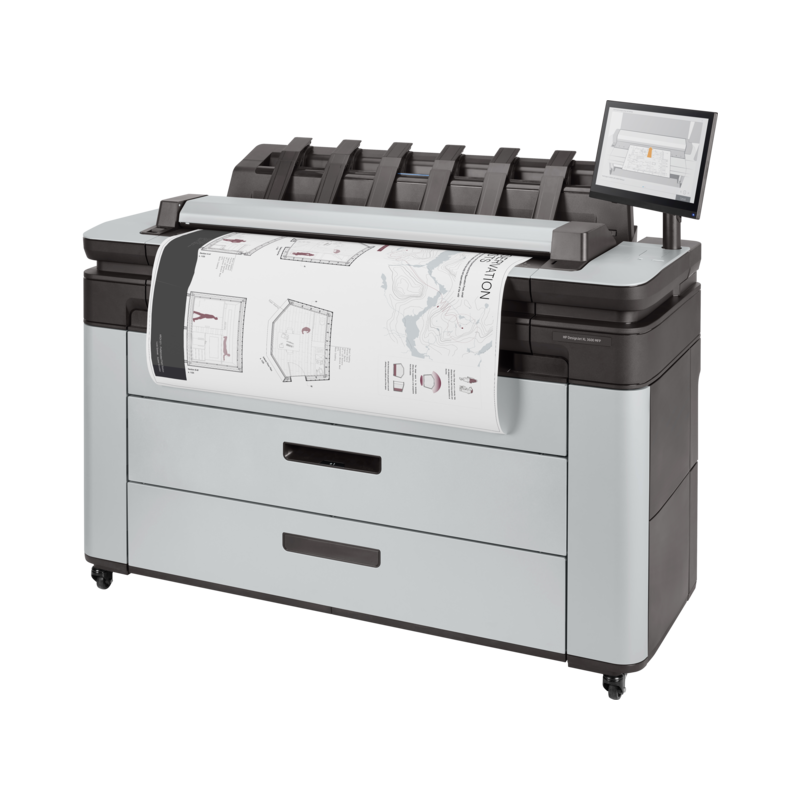

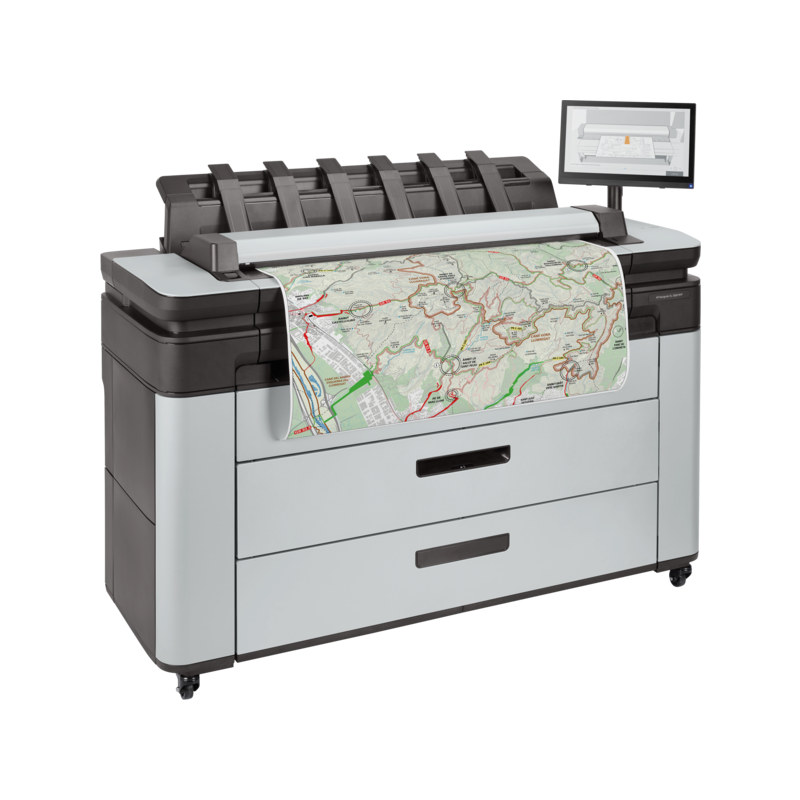

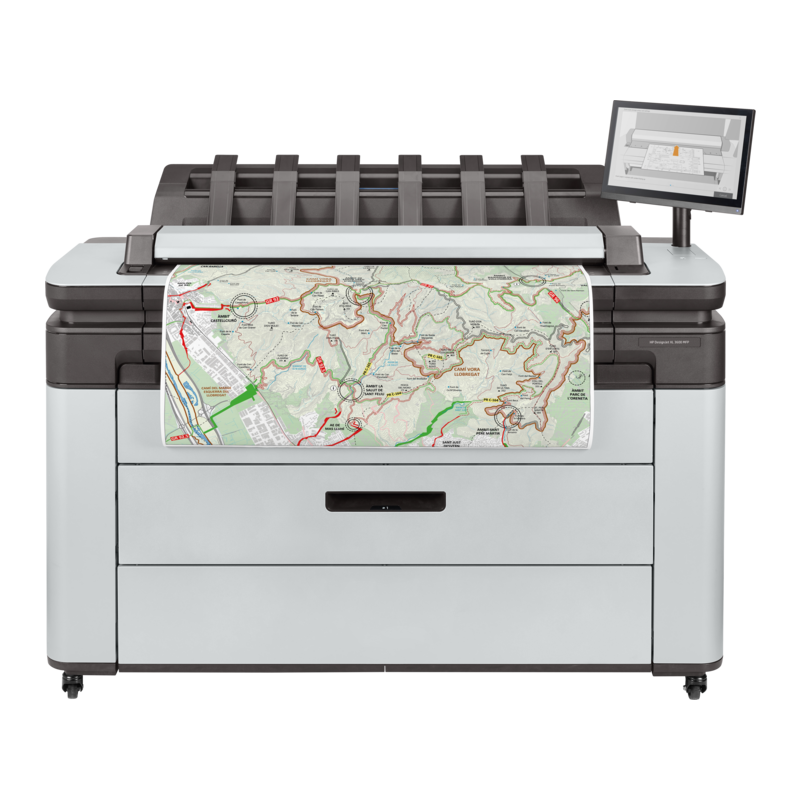

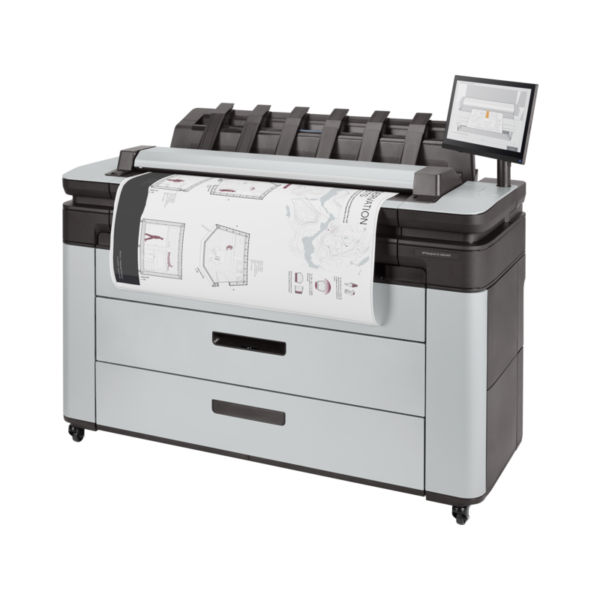

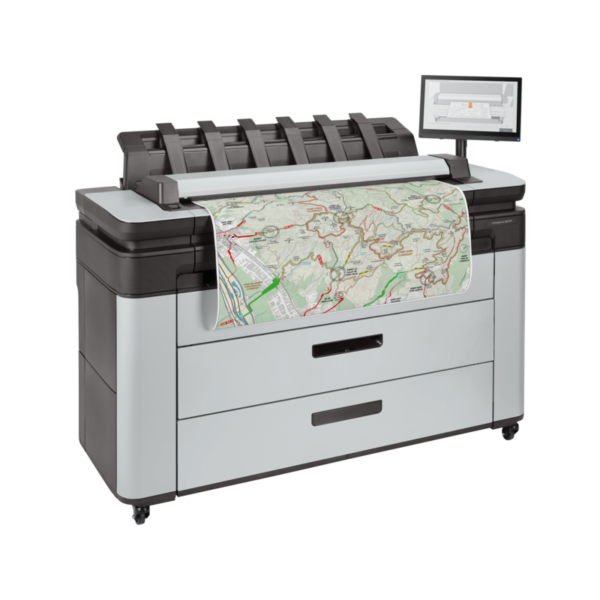

HP DesignJet XL3600 36-in Multifunction Printer

General
Technology – HP Thermal Inkjet
Applications – Line drawings; Maps; Orthophotos; Presentations; Renderings
Ink types – Dye-based (C, G, M, pK, Y); pigment-based (mK)
Ink cartridges – 6 (cyan, gray, magenta, matte black, photo black, yellow)
Printheads – 1 (C, M, Y, G, mK, pK)
Print resolution – Up to 2400 x 1200 optimized dpi
Minimum line width – 0.0008 in (0.02 mm) (HP-GL/2 addressable)
Guaranteed minimum line width – 0.07 mm (ISO/IEC 13660:2001(E))
Line accuracy – ±0.1%

Print speed
First page out 29 sec; Wake-up time less than 10 sec (no warm-up time)

Media
Roll width – 11 to 36-in (279 to 914-mm) width, 656-ft (200-m) length, 3-in core (default) or 2-in core (optional)
Roll diameter – 7 in (180 mm)
Media thickness – Up to 19.7 mil, Up to 0.5 mm
Media types – Bond and coated paper (bond, coated, heavyweight coated, super heavyweight plus matte, colored), technical paper (natural tracing, translucent bond, vellum), film (matte, polyester), photographic paper (satin, gloss, semi-gloss, matte, high-gloss), backlit, self-adhesive (twoview cling, indoor paper, polypropylene, vinyl), banner and sign materials (polypropylene,
scrim banner)

Scanner
Description – Sheetfeed, CIS (Contact Image Sensor)
Speed: Scan Up to 3 in/sec (7.62 cm/sec) color, 200 dpi,
up to 10 in/sec (25.4 cm/sec) grayscale, 200 dpi;
Copy: Up to 6 in/sec (15.24 cm/sec) color, 200 dpi, up to 10 in/sec (25.4 cm/sec)
grayscale, 200 dpi

Optical resolution – Up to 600 dpi
Scan width – 36 x 315 in (914 x 8000 mm) JPEG; 24 x 590.5 in (610 x 15,000 mm) TIFF; 36 x 315 in (914 x 8000 mm) PDF
Original thickness – 0.03 in (0.8 mm)
Scan format – JPEG, TIFF, PDF (for PostScript Printer)
Scan destination – USB, shared network folder, printer HDD, email

Embedded controller
Memory – 128 GB (file processing)
Hard drive – Standard, 500 GB (AES-256 encrypted)
Print languages – Standard: PostScript Printer: Adobe PostScript 3, Adobe PDF 1.7, HP-GL/2, HP-RTL, TIFF, JPEG, CALS G4; Non-PostScript Printer: HP-GL/2, HP-RTL, TIFF, JPEG, CALS G4
Optional: Non-PostScript Printer: Adobe PostScript 3, Adobe PDF 1.7

Connectivity
Interfaces – Gigabit Ethernet (1000Base-T), supporting the following standards: TCP/IP, BootP/DHCP (IPv4 only), DHCPv6, TFTP (IPv4 only), SNMP (v1, v2c, v3), Apple Bonjour Compatible, WS
Discovery, Embedded Web Server (HTTP, HTTPS), IPsec, SMTP (email), Raw IP printing (9100), LPD, IPP, WS print, NTLM v2, SMBv3, SSL/TLS, 802.1X authentication (LEAP, PEAP,
EAP-TLS), DFS
Printing paths – Direct printing from USB flash drive, print from network shared folder, email printing, HP driver for Windows, HP Print Service for Android, Apple AirPrint driver for macOS and iOS, HP Print for Chrome OS, HP Click, HP Smart App for iOS and Android, HP SmartStream (optional)

Dimensions (W x D x H)
Printer: 59 x 26 x 52 in (1500 x 660 x 1310 mm)
Shipping: 64 x 30 x 50 in (1620 x 770 x 1260 mm)

Weight
Printer: Single-roll: 154kg, Dual-roll: 170kg
Shipping: Single-roll: 202 kg, Dual-roll: 218 kg

Power
Consumption – < 120 W (printing + scanning); 40 W (ready); < 1.0 W (< 14 W with embedded Digital Front End) (sleep); 0.3 W (off)
Requirements – Input voltage (auto ranging) 100-240 V (±10%), 50/60 Hz (±3 Hz), 2 A
