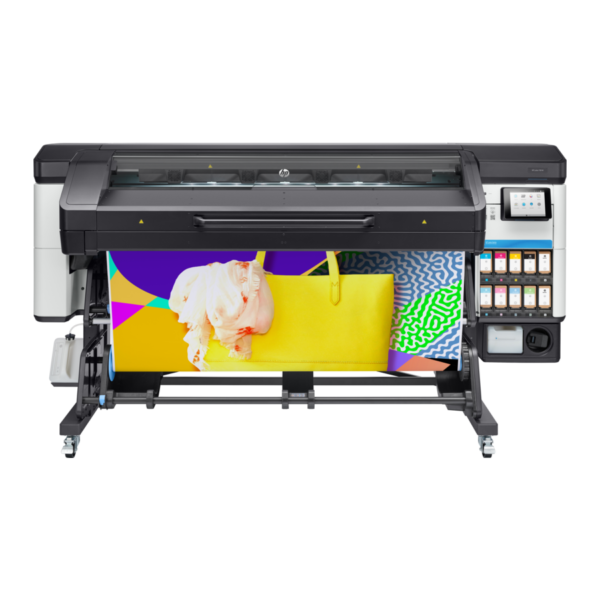

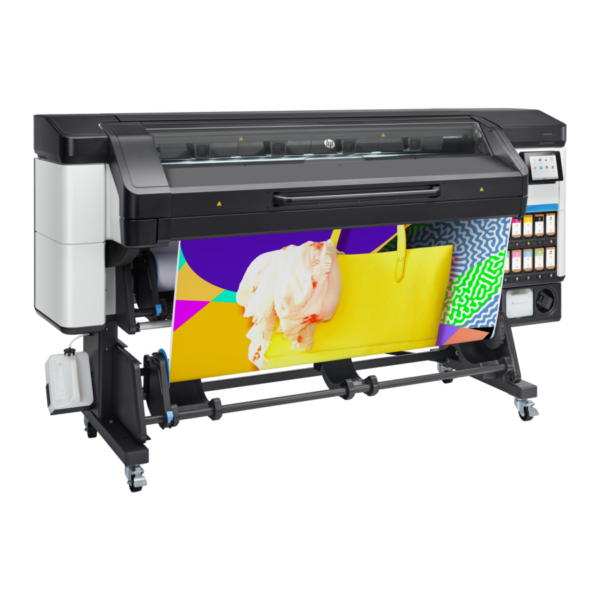

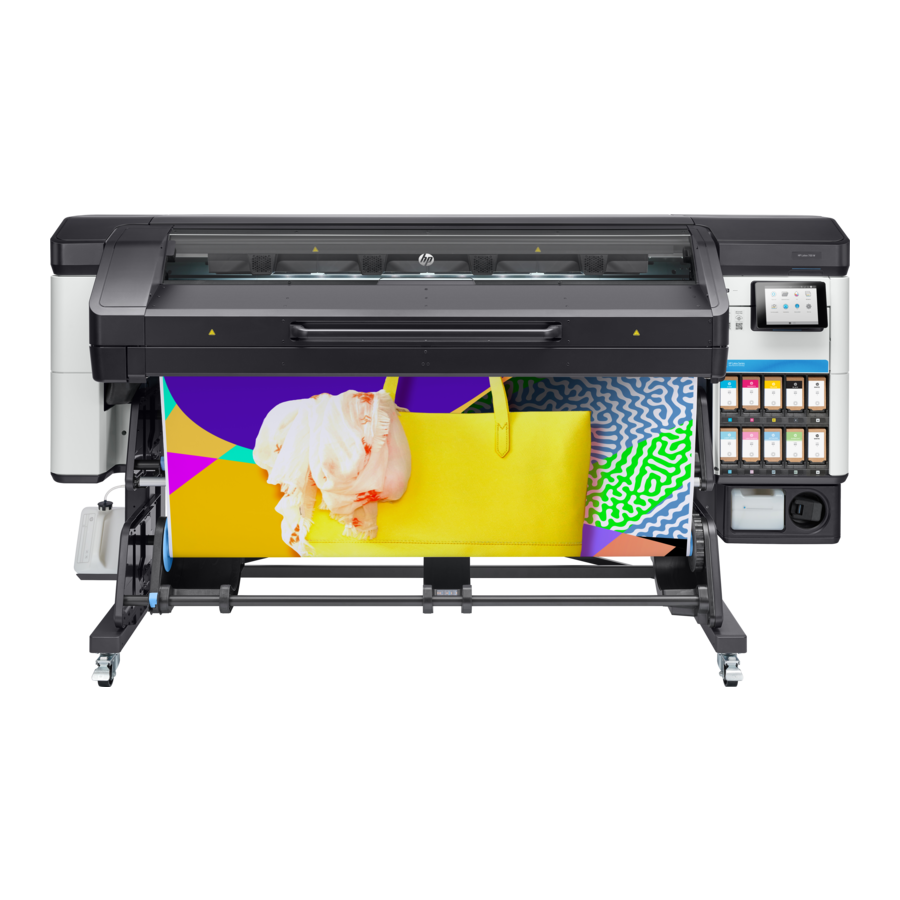

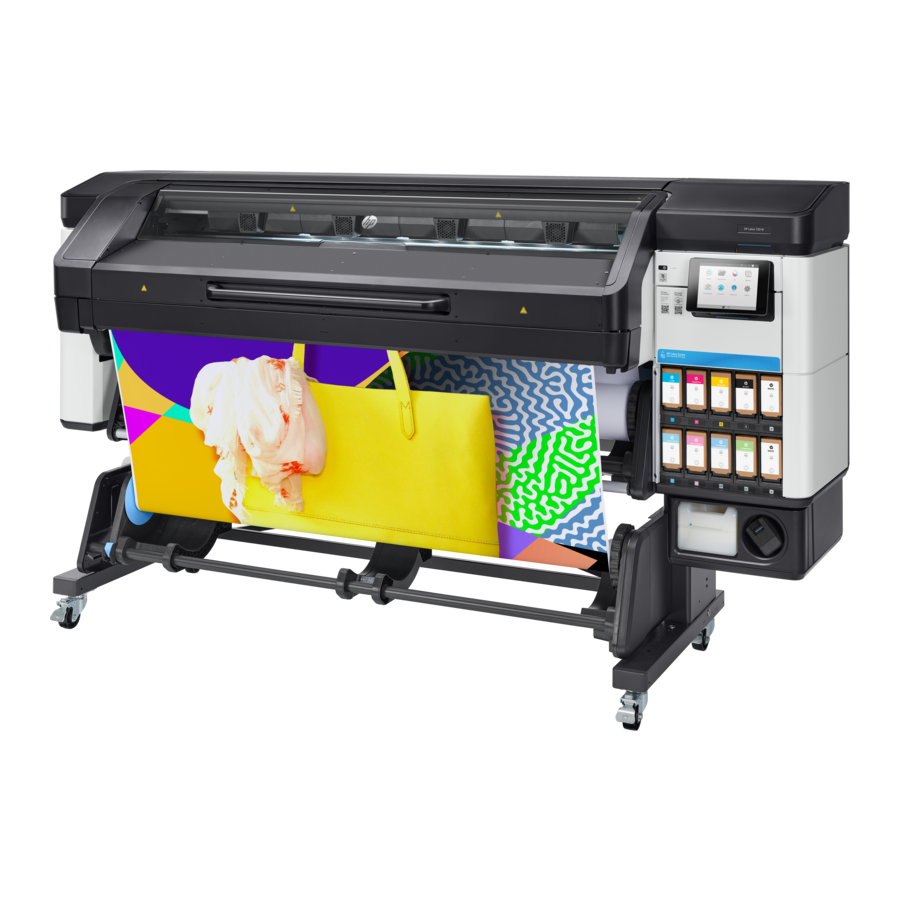

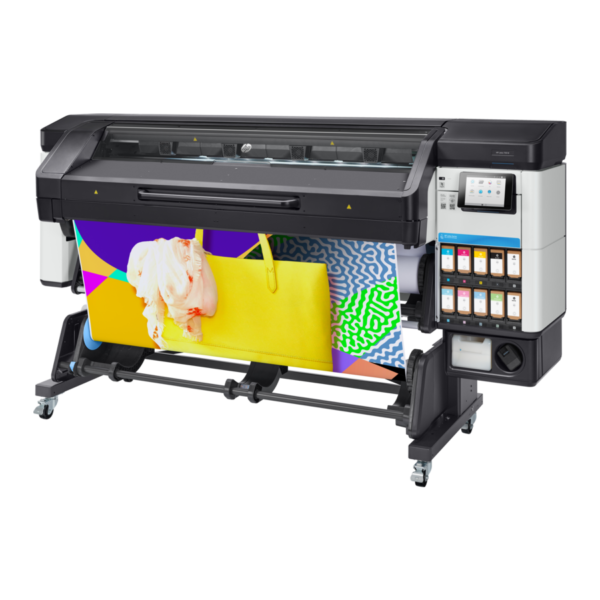

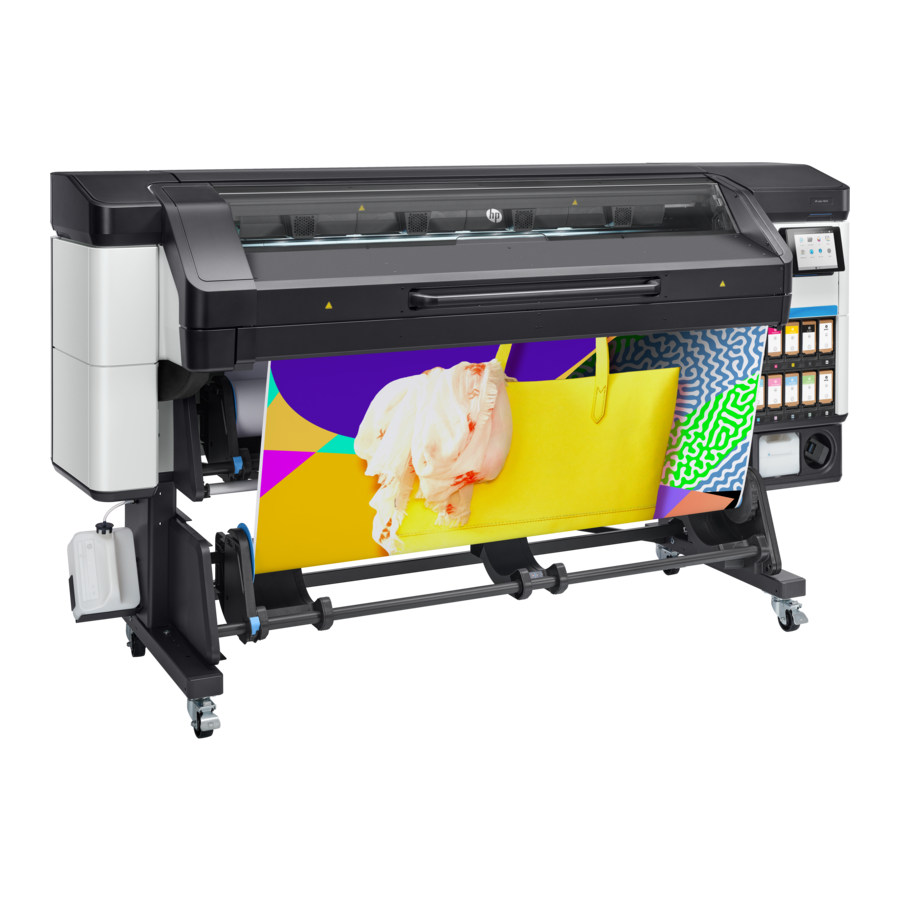

HP Latex 700W Printer

Printing modes

105 m²/hr – Max Speed (1-pass)
31 m²/hr – High Speed (4-pass)
21 m²/hr – Production Fast (6-pass)
17 m²/hr – Production Quality, Textiles and Backlits (8-pass)
16 m²/hr – High Saturation (12-pass)
12 m²/hr – High Saturation Backlits and Textiles (14-pass)
17 m²/hr – White Spot (60%)
9 m²/hr – White Overflood (60%)
3 m²/hr – White Underflood (100%)
2 m²/hr – 3 Layers Day & Night (160%)

Print resolution – Up to 1200 x 1200 dpi
Ink types – Water-based HP Latex Inks
Ink cartridges – 9 (black, cyan, light cyan, light magenta, magenta, yellow, white, HP Latex Optimizer, HP Overcoat)
Cartridge size – 1L
Printheads – 10 (2 cyan/black, 2 magenta/yellow, 2 light cyan/light magenta, 2 white, 1 HP Latex Optimizer, 1 HP Overcoat)
Long-term print-to-print repeatability – Average 95% of colors ≤ 1.5 dE2000

Media

Handling – Roll feed, take-up reel, wiper roller , automatic horizontal cutter (for vinyl, banner and canvas , paper-based media, and film
Media types – Banners, self-adhesive vinyls, films, fabrics, papers, wall coverings, canvas, synthetics, mesh, textiles
Roll size – 254 to 1625-mm rolls (580 to 1625-mm rolls with full support)
Roll weight – 55 kg
Roll diameter – 250 mm
Thickness – Up to 19.7 mil (Up to 0.5 mm)

Applications

Banners; Displays; Exhibition and event graphics; Exterior signage; Indoor posters; Interior decoration; Light boxes – film; Light boxes – paper; Murals; POP/POS; Posters; Textile; Vehicle graphics; Window graphics; Stickers

Connectivity

Interfaces Gigabit Ethernet (1000Base-T)

Dimensions (W x D x H)

Printer – 2583 x 852 x 1402 mm
Shipping – 2800 x 1130 x 1270 mm
Operating area – 2793 x 2100 mm

Weight

Printer – 267 kg
Shipping – 368 kg

Environmental ranges

Operating temperature – 15 to 30ºC
Operating humidity – 20 to 80% RH (non-condensing)

Power

Consumption – 1.5-2.6 kW (5 kW peak) (printing), 95 W (ready)
Requirements – Input voltage (auto ranging) 200-240 V (±10%) two wires and PE; 50/60 Hz (±3 Hz); two power cords; 13A max printer power cord; 9A max curing power cord
