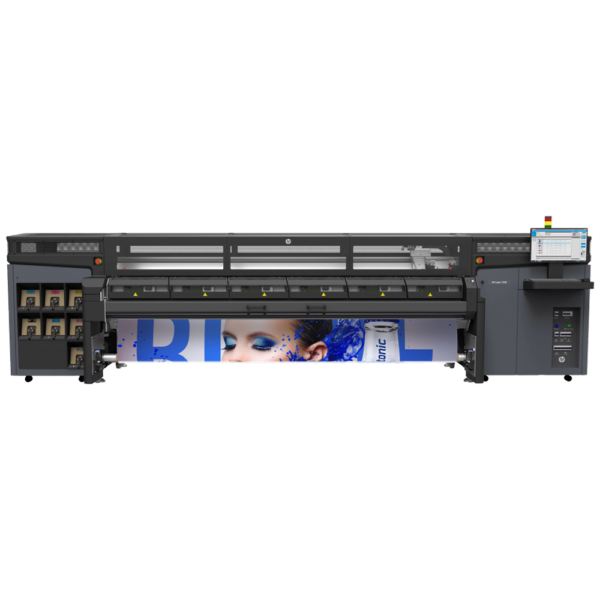

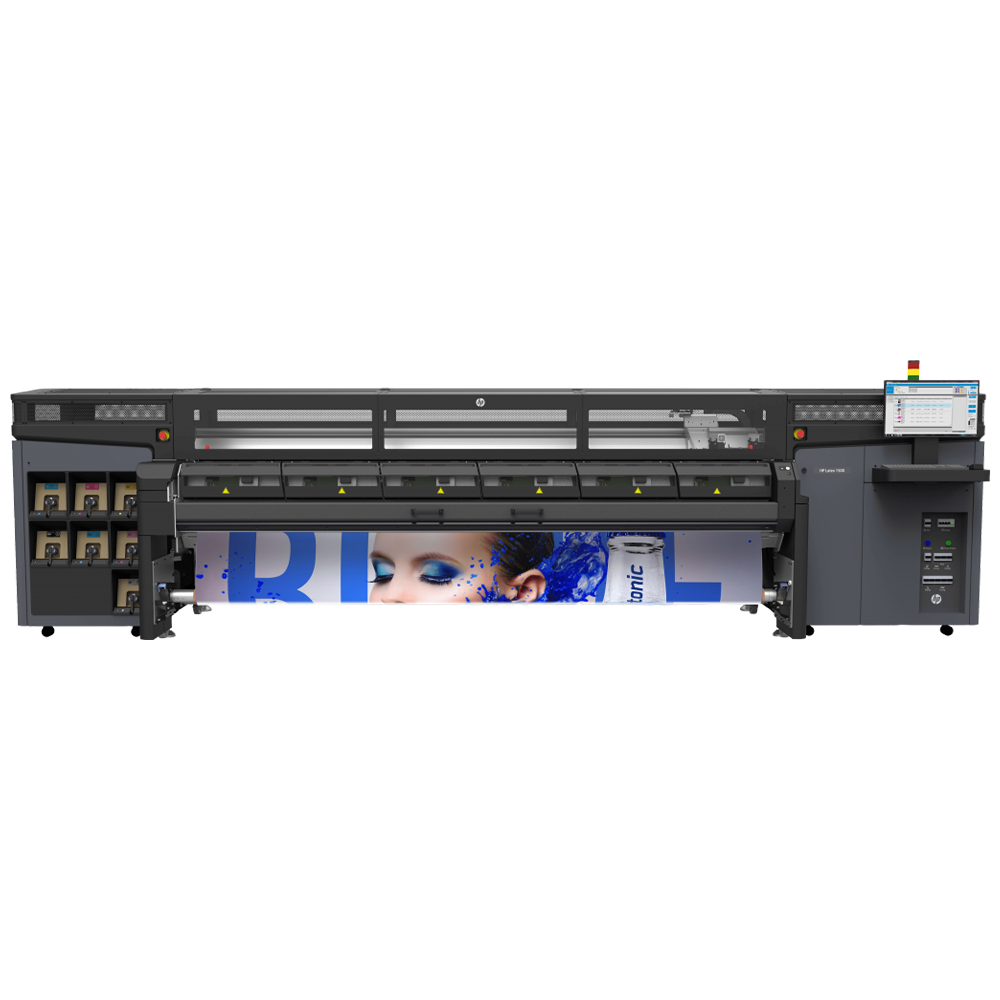

HP Latex L1500 Printer

Printing

Printing modes – 16 m²/hr (170 ft²/hr) – High Saturation Backlits (18-pass 6-color 260%)
24 m²/hr (260 ft²/hr) – Textiles and Canvas (12-pass 6-color 170%)
45 m²/hr (480 ft²/hr) – Indoor High Quality (6-pass 6-color 100% / 6-pass 6-color 120%)
57 m²/hr (610 ft²/hr) – Outdoor Plus (4-pass 6-color 100%)
74 m²/hr (800 ft²/hr) – Outdoor (3-pass 6-color 90%)
Print resolution – Up to 1200 x 1200 dpi
Ink cartridges – Black, cyan, light cyan, light magenta, magenta, yellow, HP Latex Optimizer
Cartridge size – 5 liter
Color consistency – Maximum color difference (95% of colors) <= 2 dE2000

Media

Handling – Roll-to-roll, double-sided blockout, dual-roll (optional), roll-to-freefall (optional), doublesided backlit (optional), ink collector (optional)
Media types – Banners, self-adhesive vinyls, films, papers,wallcoverings, canvas; mesh and porous textiles with optional ink collector
Roll size – Single roll up to 3.2 m (126 in ) Optional dual roll up to 2 x 1.60 m (2 x 63 in)
Roll weight – Single roll up to 160 kg (350 lb) Optional dual roll up to 2 x 70 kg (2 x 155 lb)
Roll diameter – Up to 30 cm (11.8 in)
Thickness – Up to 0.4 mm (0.015 in), by default Up to 2.0 mm (0.08 in), with custom carriage height setting
Double-sided blockout – Registration accuracy 5 mm/m (0.06 in/ft),intended for double-sided PVC blockout banners
Double-sided backlit (optional) – Registration accuracy of 2 mm (0.08 in), intended for double-sided backlit outdoor advertising applications

Dimensions (W x D x H)

Printer – 574 x 138 x 167 cm (228 x 54 x 66 in)
Shipping – 586 x 181 x 191 cm (231 x 71 x 75 in)

Weight

Printer: 1220 kg (2690 lb); shipping 2000 kg (4410 lb)

Power consumption

8 kW (typical) – Indoor High Quality mode (6-pass)
10 kW (typical) – Outdoor mode (3-pass)
