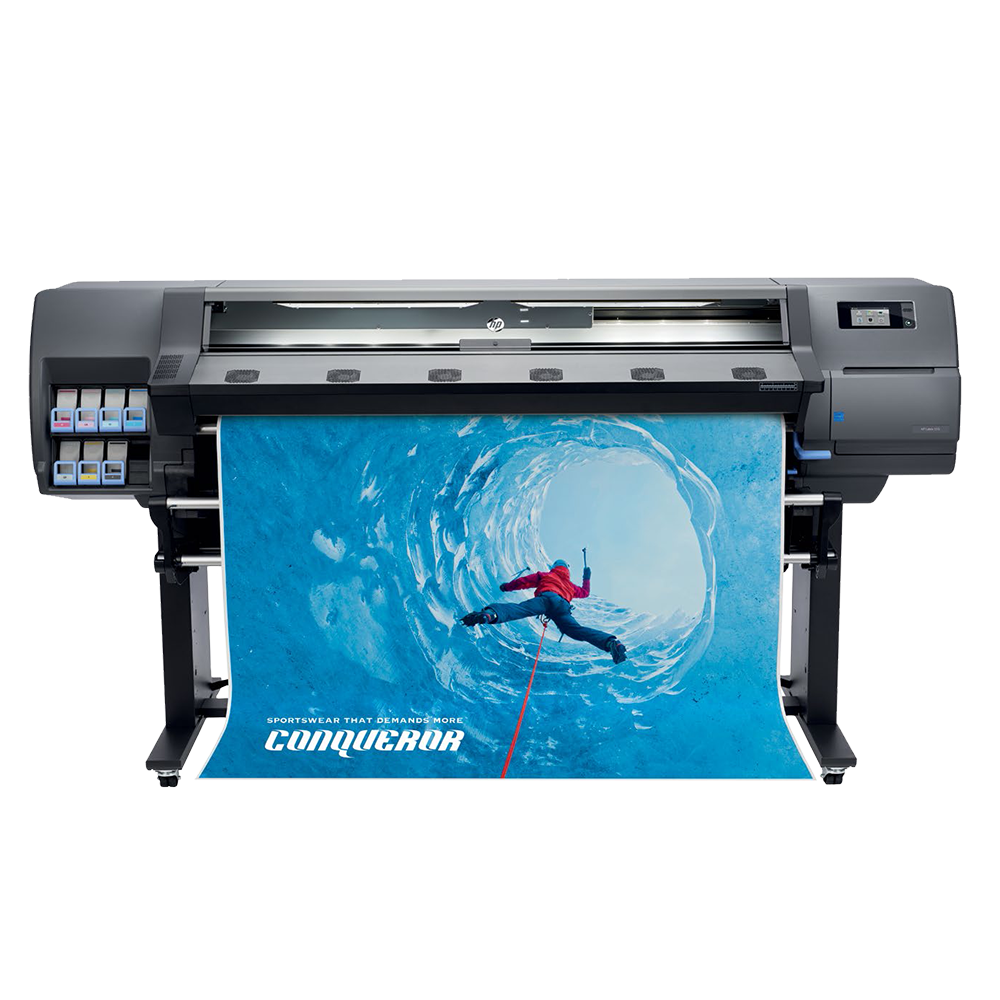

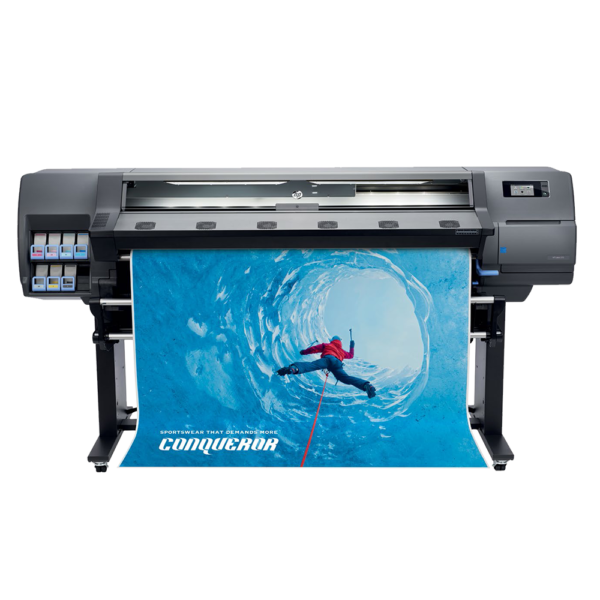

HP Latex L315 Printer

Print

Printing modes – 517 ft²/hr (48 m²/hr)- Billboard (2 pass)
174 ft²/hr (16 m²/hr)- Outdoor Plus (6 pass)
129 ft²/hr (12 m²/hr)- Indoor Quality (8 pass)
108 ft²/hr (10 m²/hr)- Indoor High Quality (10 pass)
65 ft²/hr (6 m²/hr)- Backlits, Textiles, and Canvas (16 pass)
54 ft²/hr (5 m²/hr)- High Saturation Textiles (20 pass)
Print resolution – Up to 1200 x 1200 dpi
Ink types – Water-based HP Latex Inks
Ink cartridges – 7 (black, cyan, light cyan, light magenta, magenta, yellow, HP Latex Optimizer)
Cartridge size – 775 ml
Printheads – 6 (2 cyan/black, 2 magenta/yellow, 1 light cyan/light magenta, 1 HP Latex Optimizer)
Long-term print-to-print repeatability – Average ≤ 1 dE2000, 95% of colors ≤ 2 dE2000

Media

Handling – Roll feed, take-up reel (optional), automatic cutter (for vinyl, paper-based media, backlit polyester film)
Media types – Banners, self-adhesive vinyls, films, papers, wallcoverings, canvas, synthetics, (fabrics, mesh, textiles, and any other porous materials require a liner)
Roll size – 10 to 54-in (254 to 1371-mm) rolls; (23 to 54-in (580 to 1371-mm)rolls with full support)
Roll weight – 55 lb (25 kg)
Roll diameter – 7.1 in (180 mm)
Thickness – Up to 19.7 mil (Up to 0.5 mm)

Applications

Banners; Displays; Double-sided banners; Exhibition and event graphics; Exterior signage; Indoor posters; Interior decoration; Light boxes – film; Light boxes – paper; Murals; POP/POS; Posters; Vehicle graphics; Traffic signage

Connectivity

Interfaces – Gigabit Ethernet (1000Base-T)

Dimensions (W x D x H)

Printer – 91 x 33 x 54 in (2307 x 840 x 1380 mm)
Shipping – 100 x 30 x 50 in (2541 x 760 x 1250 mm)

Weight

Printer – 384 lb (174 kg)
Shipping – 568 lb (258 kg)

Environmental ranges

Operating temperature – 59 to 86ºF (15 to 30ºC)
Operating humidity – 20 to 80% RH (non-condensing)

Power

Consumption – 2.2 kW (printing), 70 W (ready), <2.5W (sleep)
Requirements – Input voltage (auto ranging) 200-240 V two wires and PE; 50/60 Hz; two power cords; 3 A max per printer power cord; 13 A max per curing power cord
