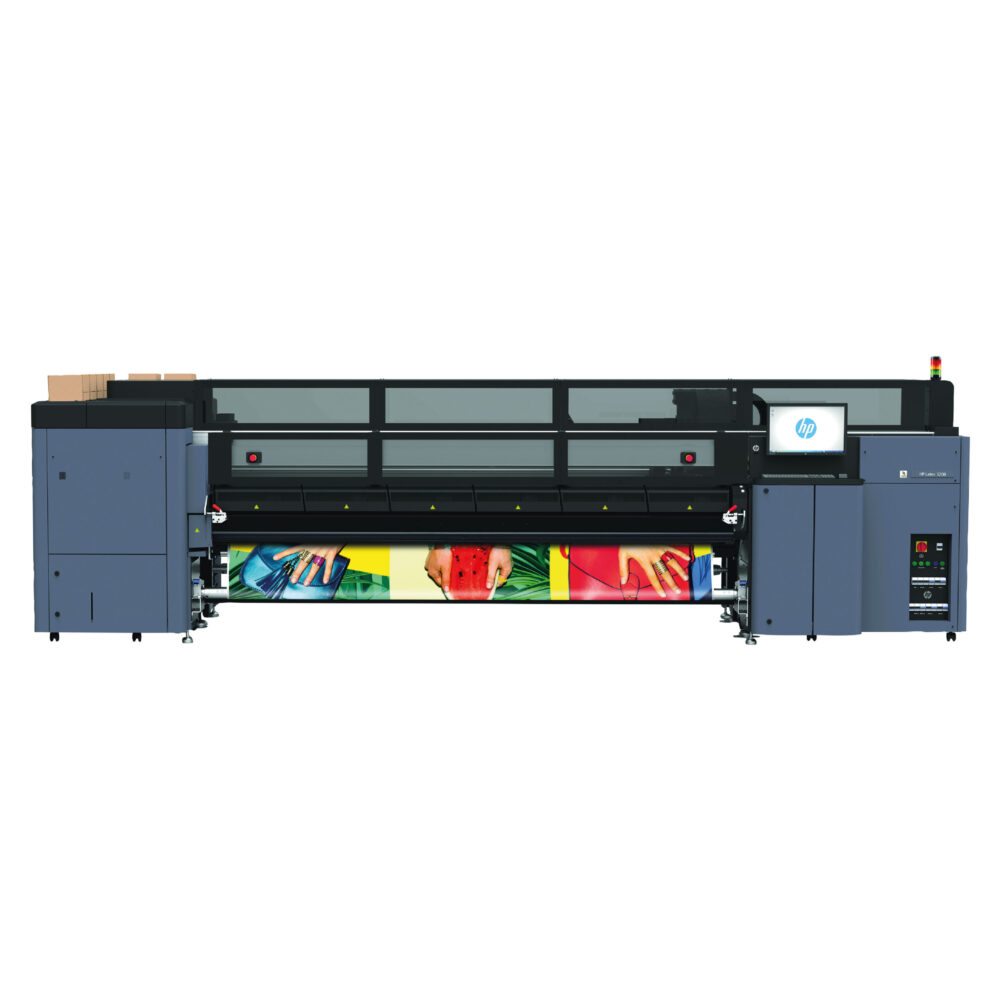

HP Latex L3200 Printer

Print

Printing modes

290 ft²/hr (27 m²/hr)- High Saturation Backlits (18p 6c 230%)
470 ft²/hr (44 m²/hr)- Textiles and Canvas (10p 6c 170%)
830 ft²/hr (77 m²/hr)- Indoor High Quality (6p 6c 100%)
1290 ft²/hr (120 m²/hr)- Outdoor (3p 6c 80%)
1950 ft²/hr (180 m²/hr)- Billboard (2p 4c 70%)

Print resolution – Up to 1200 x 1200 dpi
Ink types – Water-based HP Latex Inks
Ink cartridges – 7 (black, cyan, light cyan, light magenta, magenta, yellow, HP Latex Optimizer)
Cartridge size – 10 L
Printheads – 7 (2 cyan/black, 2 magenta/yellow, 2 light cyan/light magenta, HP Latex Optimizer)
Long-term print-to-print repeatability – Maximum color difference (95% of colors) ≤ 2 dE2000; ≤ 1 dE2000 in Tiling mode

Media

Handling – Roll-to-roll, roll-to-freefall, roll-to-collector, dual-roll, double sided blockout, double-sided backlit (optional), ink collector (optional)
Media types – Banners, self-adhesive vinyls, films, papers, wallcoverings, canvas, synthetics, fabrics, mesh, textiles
Roll size – Up to 126 in (3.2 m) single roll; Up to 2 x 63 in (2 x 1.6 m) dual roll
Roll weight – Up to 350 lb (160 kg) single roll; Up to 2 x 155 lb (2 x 70 kg) dual roll
Roll diameter – 11.8 in (30 cm)
Thickness – Up to 0.015 in (0.4 mm) default; up to 0.08 in (2.0 mm) with custom carriage height setting

Applications

Banners; Displays; Exhibition and event graphics; Exterior signage; Indoor posters; Light boxes – film; POP/POS; Textile; Vehicle graphics

Connectivity

Interfaces – Gigabit Ethernet (1000Base-T)

Dimensions (W x D x H)

Printer – 235 x 68 x 74 in (598 x 172 x 187 cm)
Shipping – 231 x 76 x 85 in (586 x 193 x 216 cm)

Weight

Printer – 4140 lb (1880 kg)
Shipping – 5820 lb (2640 kg)

Environmental ranges

Operating temperature – 59 to 86ºF (15 to 30ºC)
Operating humidity – 20 to 70% RH (non-condensing)

Power

Consumption – 10 kW (typical) – high-quality indoor mode (6-pass), 11 kW (typical) – outdoor mode (3-pass)
