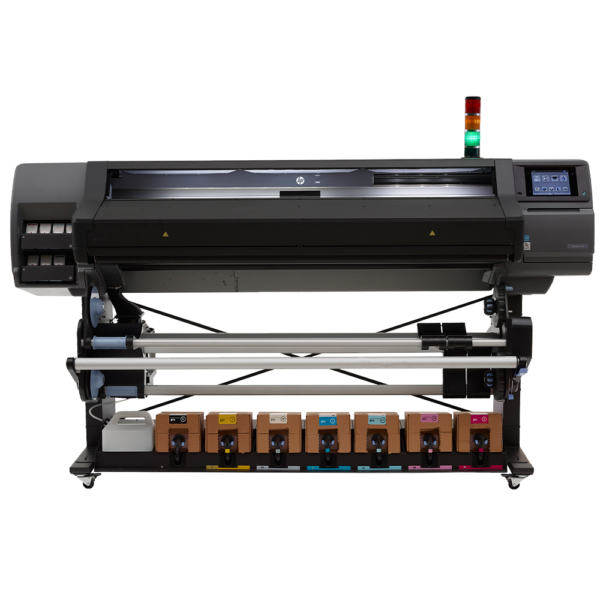

HP Latex L570 Printer

Printing modes – 980 ft²/hr 91 m²/hr)- Max Speed (1 pass)
334 ft²/hr (31 m²/hr)- Outdoor High Speed (4 pass)
248 ft²/hr (23 m²/hr)- Outdoor Plus (6 pass)
183 ft²/hr (17 m²/hr)- Indoor Quality (8 pass)
151 ft²/hr (14 m²/hr)- Indoor High Quality (10 pass)
65 ft²/hr (6 m²/hr)- Backlits, Textiles, and Canvas (16 pass)
54 ft²/hr (5 m²/hr)- High Saturation Textiles (20 pass)
Print resolution – Up to 1200 x 1200 dpi
Ink types – Water-based HP Latex Inks
Ink cartridges – 7 (black, cyan, light cyan, light magenta, magenta, yellow, HP Latex Optimizer)
Cartridge size – 3L, 775 ml
Printheads – 6 (2 cyan/black, 2 magenta/yellow, 1 light cyan/light magenta, 1 HP Latex Optimizer)
Long-term print-to-print repeatability – Average ≤ 1 dE2000, 95% of colors ≤ 2 dE2000

Media

Handling – Roll feed, take-up reel, wiper roller, automatic cutter (for vinyl, paper-based media, backlit polyester film)
Media types – Banners, self-adhesive vinyls, films, papers, wallcoverings, canvas, synthetics, fabrics, mesh, textiles
Roll size – 10 to 64-in (254 to 1625-mm) rolls; 23 to 64-in (580 to 1625-mm) rolls with full support
Roll weight – 121 lb (55 kg)
Roll diameter – 9.8 in (250 mm)
Thickness – Up to 19.7 mil (Up to 0.5 mm)

Applications

Banners; Displays; Double-sided banners; Exhibition and event graphics; Exterior signage; Indoor posters; Interior decoration; Light boxes – film; Light boxes – paper; Murals; POP/POS; Posters; Textile; Vehicle graphics; Traffic signage

Connectivity

Interfaces Gigabit Ethernet (1000Base-T)

Dimensions (W x D x H)

Printer – 101 x 31 x 56 in (2560 x 792 x 1420 mm)
Shipping – 108 x 41 x 67 in (2750 x 1037 x 1689 mm)
Operating area – 109 x 71 in (2761 x 1792 mm)

Weight

Printer – 551 lb (250 kg)
Shipping – 794 lb (360 kg)

Environmental ranges

Operating temperature – 59 to 86ºF (15 to 30ºC)
Operating humidity – 20 to 80% RH (non-condensing)

Power

Consumption – 4 kW (printing), 85 W (ready), <3 W (sleep)
Requirements – Input voltage (auto ranging) 200 to 240 VAC two wires and PE; 50/60 Hz (+/- 3 Hz); two power cords; 13 A max per power cord
