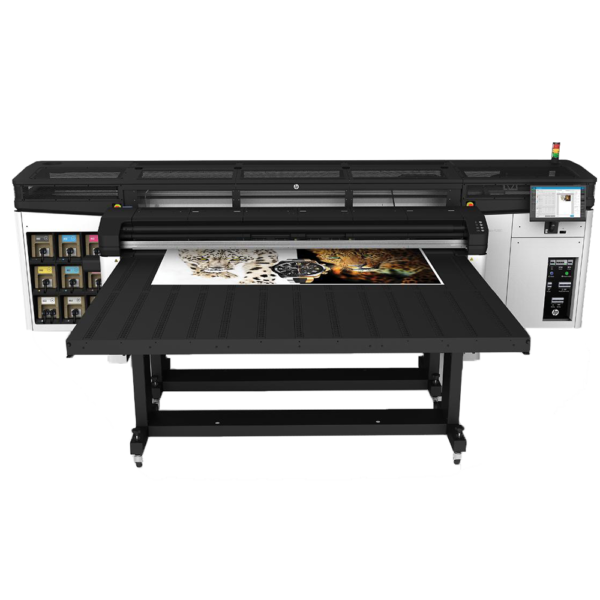

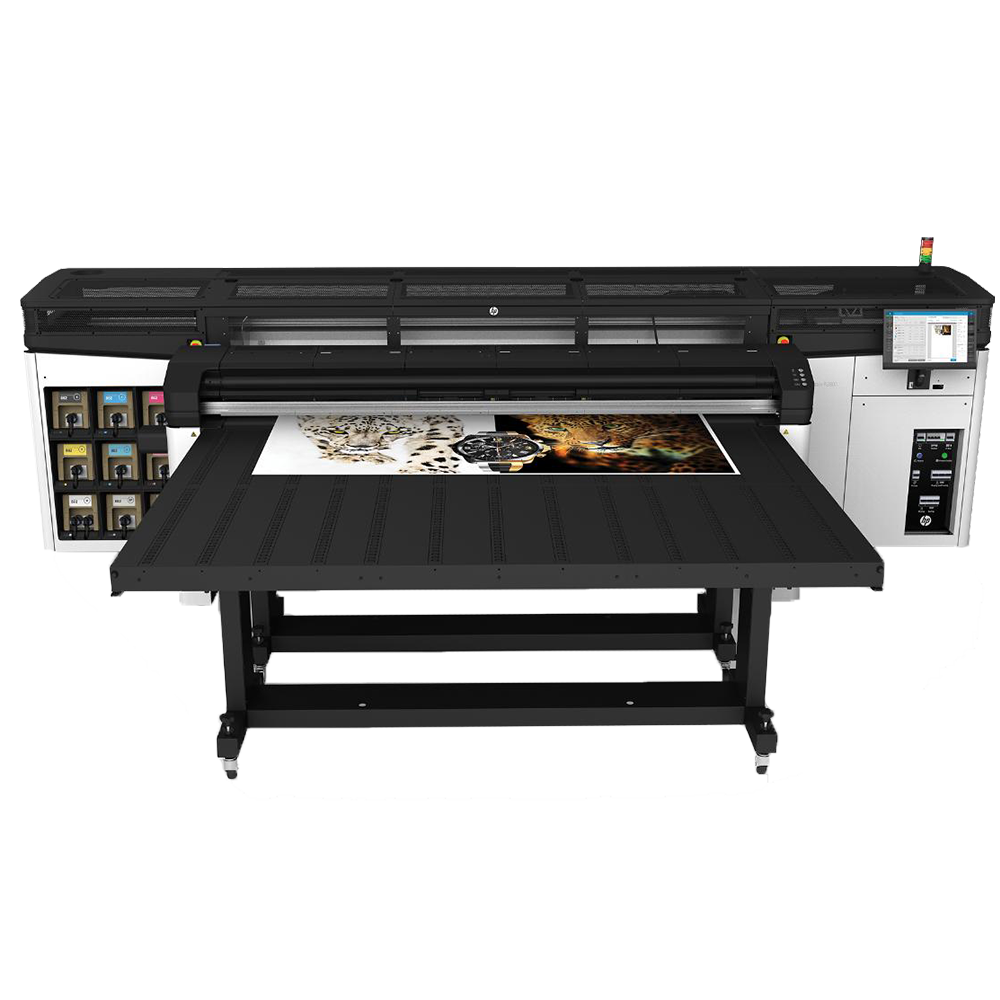

HP Latex R2000 Plus Printer

Print
Printing modes
22 m²/hr – Indoor High Quality (12p 120%)
43 m²/hr – Indoor Production (6p 110%)
86 m²/hr – Outdoor (3p 70%)
36 m²/hr – White Spot (100%)
16 m²/hr – White Overflood/Underflood (100%)
5.2 m²/hr – 3 layers day & night

Print resolution – Up to 1200 x 1200 dpi
Ink types – Water-based HP Latex Inks
Ink cartridges – 9 (cyan, magenta, yellow, black, light cyan, light magenta, HP Latex Optimiser, HP Latex Overcoat, white)
Cartridge size – 5 L (colours, HP Latex Optimiser, HP Latex Overcoat); 3 L (white)
Printheads – 8 (cyan/black, magenta/yellow, light cyan/light magenta, HP Latex Overcoat, 2 HP Latex Optimiser, 2 white)
Long-term print-to-print repeatability – Average ≤ 1.0 dE2000, 95% of colours ≤ 2 dE2000

Media
Handling – Flatbed, sheet feed, roll feed, vacuum belt media drive for easy loading and accurate media advance
Media types – Rigid substrates: paper foamboard, plastic foamboard, PVC foam, plastic corrugated, acrylic, polycarbonate, polystyrene, compressed cardboard, corrugated board, honeycomb board, aluminum composite panel, wood, glass, ceramic; Roll substrates: PVC banner, self-adhesive vinyl, coated paper, polypropylene, polystyrene, polycarbonate, polyester, textile (non porous), canvas, leather
Rigid media size – 297 x 420 mm to 2489 x 1220 mm (up to 2489 x 3050 mm with two sets of optional extension tables)
Roll size – 60.9 cm to 2.49 m
Roll weight – Up to 100 kg
Roll diameter – Up to 25 cm
Thickness – Up to 50.8 mm

Applications
Signage: indoor, flat, backlit, thermoformed; Decoration: wall coverings, window decoration; Vehicle decoration: fleet graphics, wraps, decals; Textile: soft signage, frontlit, backlit; POS and Packaging: corrugated displays, short-run customized packaging, prototyping

Connectivity
Interfaces – Gigabit Ethernet (1000Base-T)

Dimensions (W x D x H)
Printer – 5.10 x 2.04 x 1.75 m (printer); 5.10 x 3.64 x 1.75 m (including standard input and output tables)
Shipping – 5.32 x 2.24 x 2.15 m
Operating area – 8.7 x 7.23 x 3 m

Weight
Printer – 1600 kg
Shipping – 2800 kg

Environmental ranges
Operating temperature – 15 to 30ºC
Operating humidity – 20 to 70% RH (non-condensing)

Power
Consumption 10 to 12 kW (typical)
