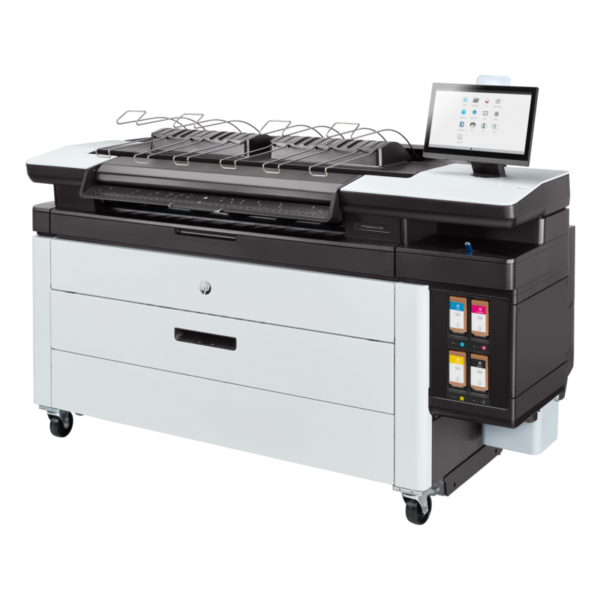

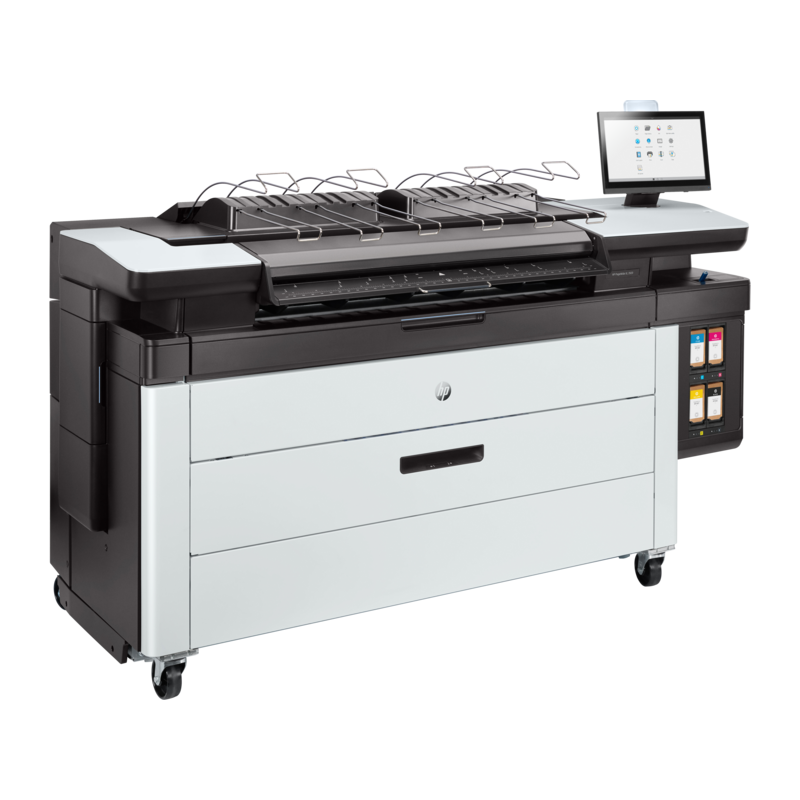

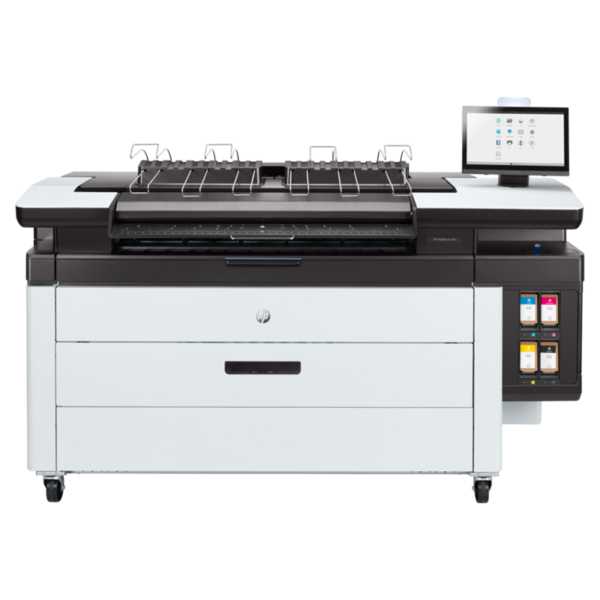

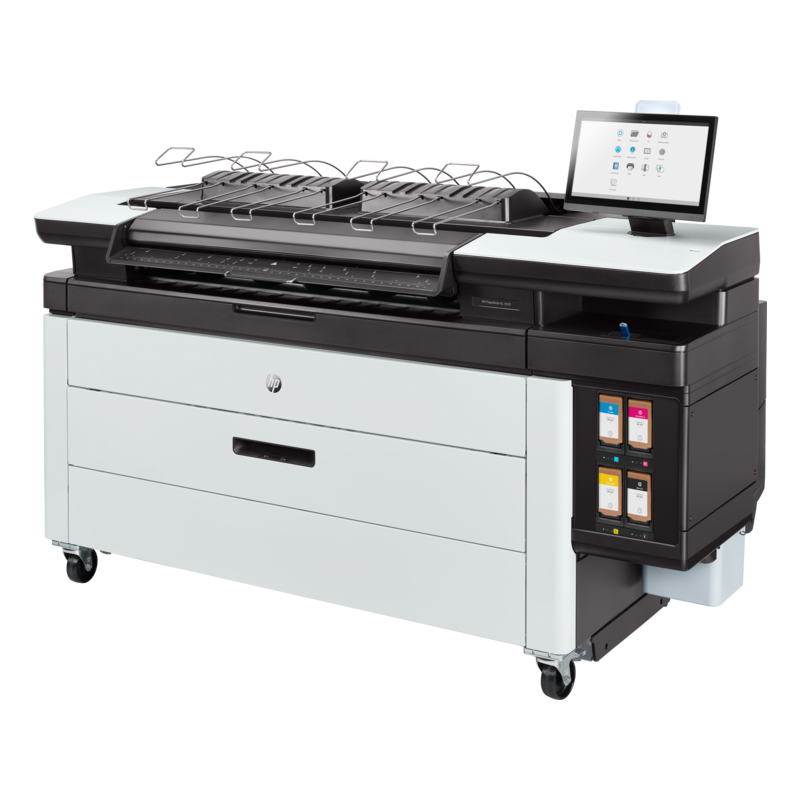

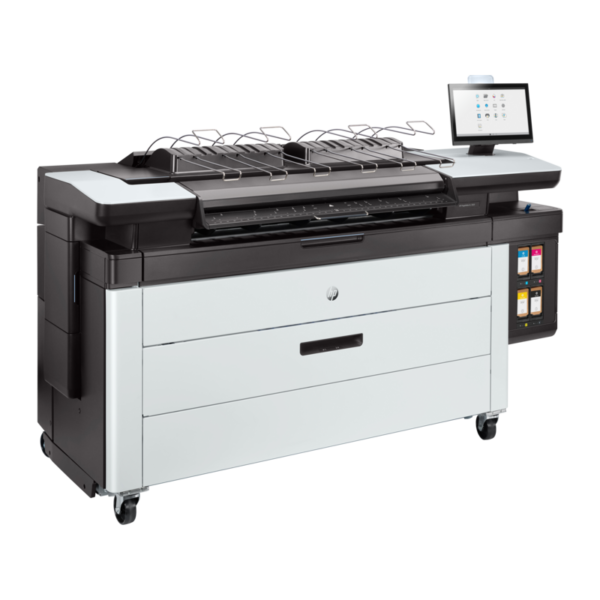

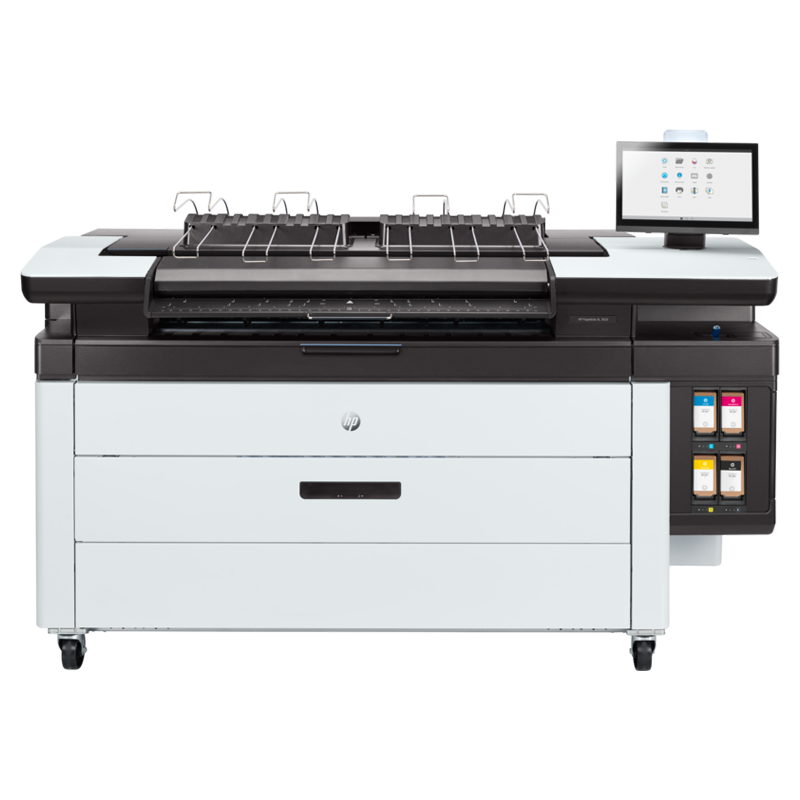

HP PageWide XL 3920 40-in Multifunction Printer

General
Description – Large-format color MFP or printer
Technology – HP PageWide Technology
Applications – Line drawings, Maps, Orthophotos, Posters
Ink types – Pigment-based (cyan, magenta, yellow, black)
Ink cartridges – 4 (1 x 500-ml per color)
Printheads – 8 x HP 841 PageWide XL Printheads
Average printhead life – 32 liters
Printhead warranty – 10 liters or 12 months from installation
Print resolution – 1200 x 1200 dpi
Minimum line width – 0.02 mm (0.0008 in) (HP-GL/2 addressable)
Guaranteed minimum line width – 0.0033 in (0.085 mm) (ISO/IEC 13660:2001(E))
Line accuracy – ±0.1%

Print Speed
A1/Arch D/ANSI D (long edge first) – 6 pages/min
Warm-up time – No warm up
First page out – 30 sec (from Ready mode)

Scanner
Description – 36-in (91-cm) CIS scanner
Speed – Color: up to 3 in/sec (7.62 cm/sec), Grayscale: up to 10 in/sec (25.4 cm/sec)
Optical resolution – 1200 dpi
Scan width – Up to 36 in (914 mm)
Original thickness – Up to 0.01 in (0.26 mm)
Maximum copy length – 374.5 in (9512 mm)
Maximum scan length – 708.7 in (18 m) (TIFF, 24-in (610-mm) wide original at 200 dpi), 315 in (8 m) (JPEG), 196.9 in (5 m) (PDF)
Scan format – Standard: JPEG, TIFF Optional: PDF 1.7, multipage PDF 1.7, PDF/A 1.4 (with PS/PDF upgrade)
Scan features – Preview with cropping, scan quicksets, batch scanning
Scan destination – USB, network folder (SMB), scan to email and to HP SmartStream software, scan to FTP

Media
Media rolls – 2 rolls default with auto-switching, expandable to 4 rolls
Roll width – 11 to 40 in (279 to 1016 mm)
Roll length – Up to 650 ft (200 m)
Roll diameter – Up to 7 in (177 mm)
Roll core diameter – 3 in (7.6 cm)
Media weight – 19 to 53 lb (70 to 200 g/m²)
Media thickness – Up to 15.7 mil (0.4 mm)
Media types – Bond and recycled papers, poster papers, polypropylene, Tyvek® papers, matte film
Media output (standard) – Standard: Top stacker

Embedded Controller
Processor – Intel Core i3
Memory – 8 GB DDR3
Hard drive – 1 x 500 GB HDD, self-encrypted with AES-256
Print languages (standard) – HP-GL/2, Adobe PostScript 3, Adobe PDF 1.7, TIFF, JPEG (with PS/PDF upgrade)
Remote management – HP Partner Link, HP Embedded Web Server, HP Web Jetadmin

Connectivity
Interfaces – TCP/IP, BootP/DHCP, USB 2.0 host (certified)
Printing paths – HP SmartStream software (optional), HP Click printing software, HP Universal Print Driver (HP-GL/2 and PS), HP PageWide XL print drivers (PDF, HP-GL/2, and PS)

Dimensions (W x D x H)
Printer – 77.2 x 31.5 x 51.3 in (1960 x 800 x 1303 mm)
MFP – 77.2 x 34 x 51.3 in (1960 x 864 x 1303 mm)10
Shipping – 86.8 x 42.1 x 69.5 in (2180 x 1068 x 1764 mm)

Weight MFP Printer
MFP – 948 lb (451 kg)
Shipping – 1368 lb (620 kg)

Power
Requirements – Input voltage (auto ranging) 100-127 / 200-240 V (±10%), 50/60 Hz (± 3 Hz), 7/3.5 A
Consumption – 0.4 kW (typical); 0.7 kW (max printing); 108.4 watts (ready); < 1 watts (< 4.6 watts with embedded Digital Front End) (sleep)
