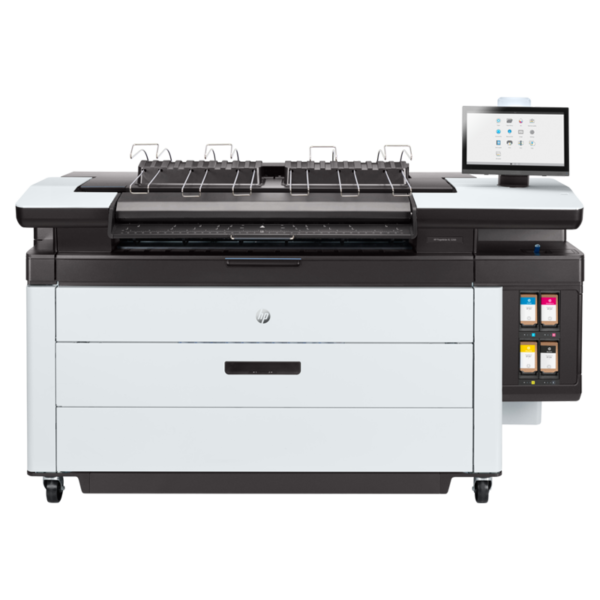

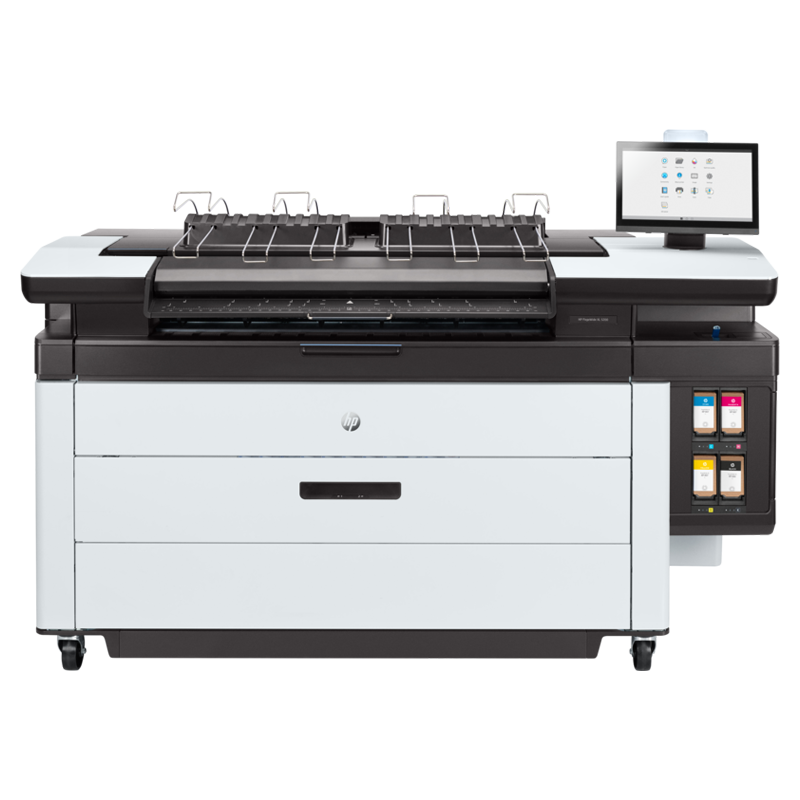

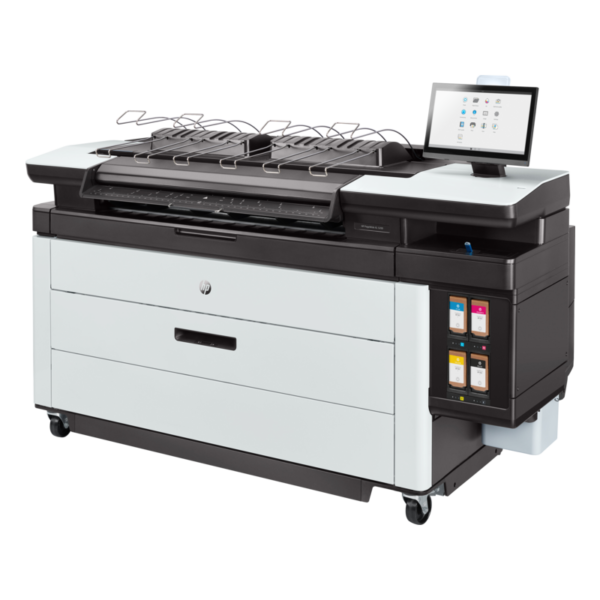

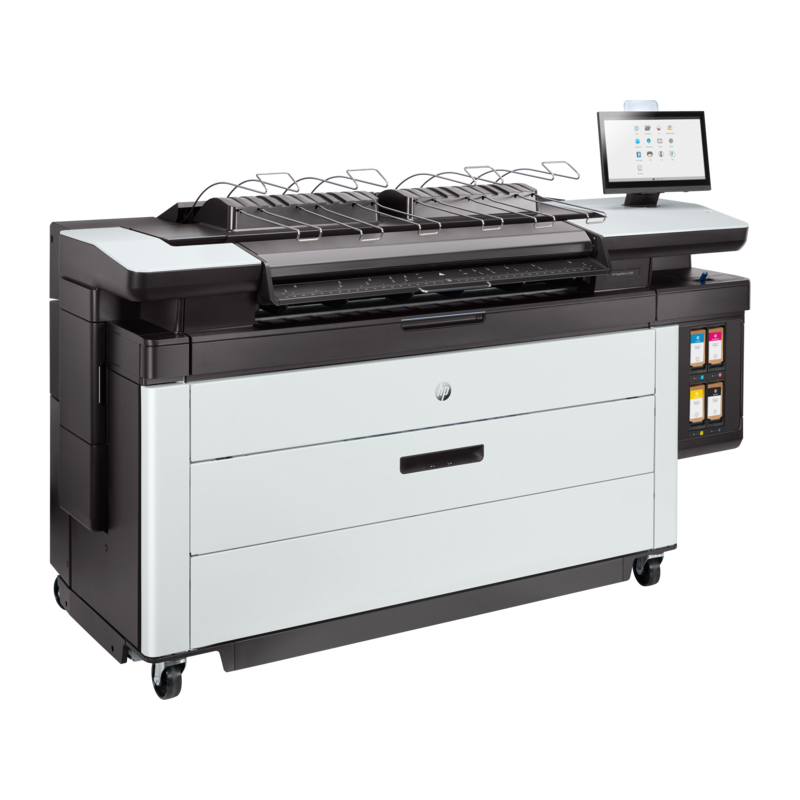

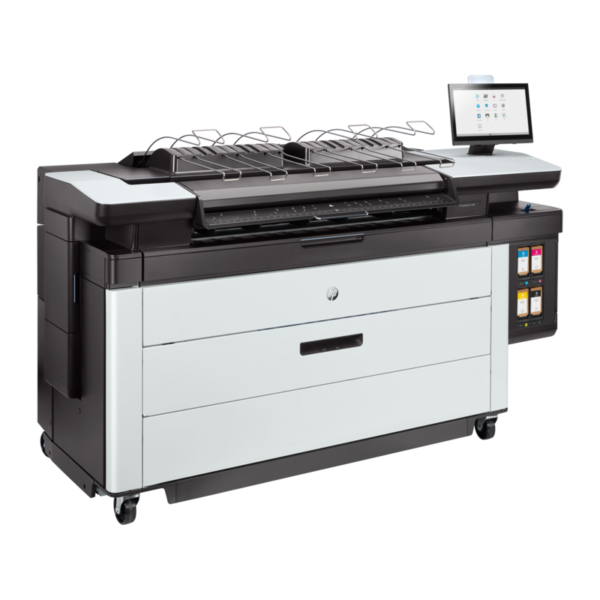

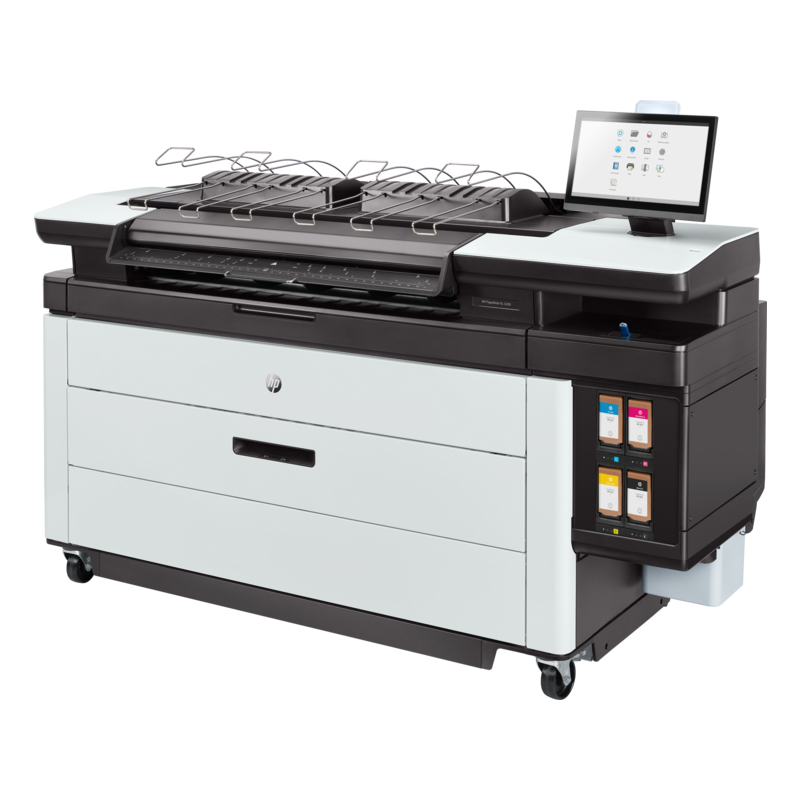

HP PageWide XL 5200 40-in Printer

General
Description – Large-format color MFP or printer
Technology – HP PageWide Technology
Applications – Line drawings, Maps, Orthophotos, Posters
Ink types – Pigment-based (cyan, magenta, yellow, black)
Ink cartridges – 4 (1Litre per color)
Printheads – 8 x HP 841 PageWide XL Printheads
Average printhead life – 32 liters
Printhead warranty – 10 liters or 12 months from installation
Print resolution – 1200 x 1200 dpi
Minimum line width – 0.0008 in (0.02 mm) (HP-GL/2 addressable)
Guaranteed minimum line width – 0.0033 in (0.085 mm) (ISO/IEC 13660:2001(E))6
Line accuracy – ±0.1%7

Print Speed
Maximum print speed – 50 ft/min (15 m/min)
A1/Arch D/ANSI D (long edge first) – 20 pages/min
A0/Arch E/ANSI E (short edge first) – 11 pages/min
ISO B1 (long edge first) – 17 pages/min
Warm-up time – No warm up
First page out – 20 sec (from Ready mode)

Scanner
Description – 36-in (91-cm) CIS scanner
Speed – Color: up to 3 in/sec (7.62 cm/sec) at 200 dpi, Grayscale: up to 10 in/sec (25.4 cm/sec) at 200 dpi
Optical resolution – 1200 dpi
Scan width – Up to 36 in (914 mm)
Original thickness – Up to 0.01 in (0.26 mm)
Maximum copy length – 374.5 in (9512 mm)
Maximum scan length – 708.7 in (18 m) (TIFF, 24-in (610-mm) wide original at 200 dpi), 315 in (8 m) (JPEG), 196.9 in (5 m) (PDF)
Scan format (standard) – Scan format (standard) JPEG, TIFF, PDF 1.7, multipage PDF 1.7, PDF/A 1.4
Scan features – Preview with cropping, scan quicksets, batch scanning
Scan destination – USB, network folder (SMB), scan to email, scan to HP SmartStream software

Media
Media rolls – 2 rolls default with auto-switching, expandable to 4 rolls
Roll width – 11 to 40 in (279 to 1016 mm)
Roll length – Up to 650 ft (200 m)
Roll diameter – Up to 7 in (177 mm)
Roll core diameter – 3 in (7.6 cm)
Printable Width – Up to 39.4 in (1000 mm)
Printable length – Up to 650 ft (200 m) for CAD and 98 ft (30 m) for poster9
Media weight – 19 to 53 lb (70 to 200 g/m²)
Media thickness – Up to 15.7 mils (0.4 mm)
Media types – Bond and recycled papers, poster papers, polypropylene, Tyvek®, matte film
Media output (standard) – Basket
Media output (optional) – High-capacity stacker, online folder, top stacker

Embedded Controller
Processor – Intel Core i3
Memory – 16 GB DDR4
Hard drive – 1 x 128 GB SSD; 1 x 500 GB HDD, self-encrypted with AES-256
Print languages (standard) – HP-GL/2, PCL 3 Win, Adobe PostScript 3, Adobe PDF 1.7, TIFF, JPEG
Remote management – HP Partner Link, HP Embedded Web Server, HP Web Jetadmin

Connectivity
Interfaces – TCP/IP, BootP/DHCP, USB 2.0 host (certified)
Printing paths – HP SmartStream software (optional), HP Click software (optional), HP Universal Print Driver (HP-GL/2 and PS), HP PageWide XL print drivers (PDF, HP-GL/2, and PS)

Dimensions (W x D x H)
Printer – 77 x 80.3 x 55.7 in
High-capacity Stacker – 55.6 x 49.1 x 42.6 in
Shipping – 88.9 x 40.9 x 62.1 in

Printer Weight
Printer – 1128 lb (511 kg)
High-capacity Stacker – 308 lb (140 kg)
Shipping – 1490 lb (676 kg)

Power
Consumption – 0.52 kW (typical); 0.9 kW (max printing); 108.4 watts (ready); < 1 watts (< 4.6 watts with embedded Digital Front End) (sleep)
Requirements – Input voltage (auto ranging) 100-127 / 200-240 V (±10%), 50/60 ±3 Hz, 12/6.5 A
