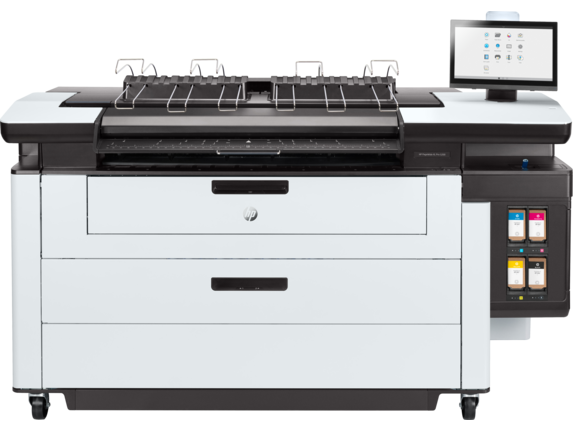

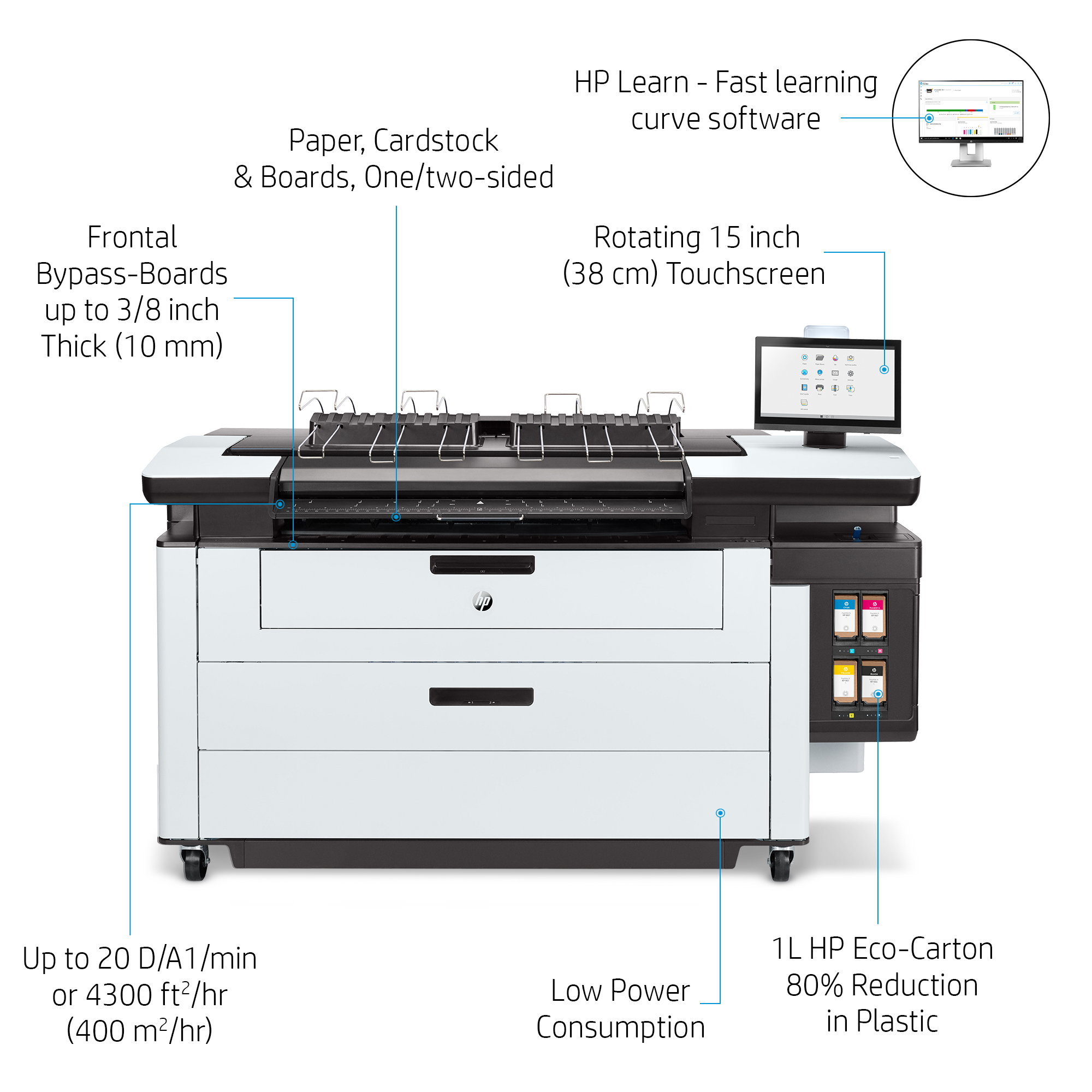

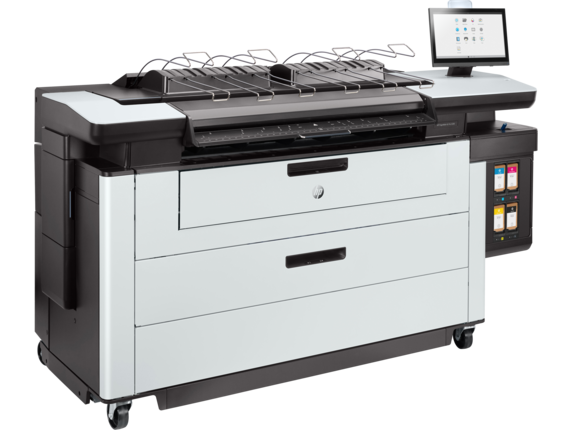

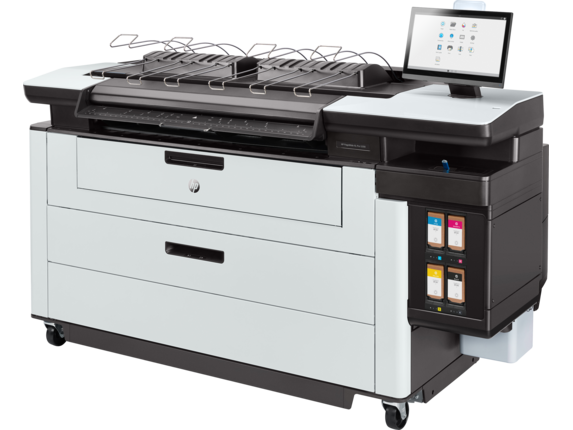

HP PageWide XL Pro 5200 Multifunction Printer

General
Technology – HP PageWide Technology
Applications – Line drawings; Maps; Orthophotos; Posters; Double-sided posters; Presentation boards; Wrapping paper
Ink types – Pigment-based (cyan, magenta, yellow, black)
Ink cartridges – 4 (1 Litre per color)
Printheads – 8 x HP 841 PageWide XL Printheads
Average printhead life – 32 liters
Printhead warranty – 10 liters or 12 months from installation
Print resolution – 1200 x 1200 dpi
Minimum line width – 0.02 mm (0.0008 in) (HP-GL/2 addressable)
Line accuracy – ±0.1%

Print Speed
Maximum print speed – 23 m/min (75 ft/min)
Technical documents (from roll) – Up to 1100 A1 pages/hr, 20 A1 pages/min
Poster full coverage (from input tray) – Up to 100 m²/hr, 3 B1 pages/min
Warm-up time – No warm up, except for natural tracing paper (3 min)

Media
Media rolls – 2 rolls default with auto-switching, expandable to 6 rolls
Roll width – 279 to 1016 mm (11 to 40 in)
Roll length – Up to 200 m (650 ft)
Roll diameter – Up to 177 mm (7 in)
Roll core diameter – 7.6 cm (3 in)
Sheet/ Board size – 297 to 1020 mm (width), 450 to 765 mm (length)
Standard sheets/ Boards – A2, A1, B2, B1
Media weight – 70 to 200 g/m² (19 to 53 lb)
Media thickness – Up to 0.4 mm (roll); up to 10 mm (sheet/board)
Media types – Bond and recycled papers, poster papers, polypropylene, Tyvek papers, matte film
Media output (standard) – Basket
Media output (optional) – High-capacity stacker, online folder, top stacker

Scanning
Speed – Color: up to 15.24 cm/sec; Grayscale: up to 25.4 cm/sec
Optical resolution – 1200 dpi
Scan width – Up to 914 mm
Maximum copy length – 9.5 m
Maximum scan length – 50 m (PDF), 12 m (TIFF), 8 m (JPEG)
Scan format – JPEG, TIFF, multi-TIFF, PDF, PDFA, multi-PDF, multi-PDFA (with PostScript/PDF upgrade)
Scan features – Live preview, scan quicksets, smart background removal, black enhancement, automatic de-skew, reduce scan speed, post-edit settings (contrast, brightness, rotation, cropping and skew)
Scan destination – Printer storage, USB drive, network folder (SMB), My home folder, scan to email, scan to HP SmartStream software

Embedded Controller
Processor – Intel Core i3
Memory – 16 GB DDR4
Hard drive – 1x 128 GB SSD; 1x 500 GB HDD, self-encrypted with AES-256
Print languages (standard) – HP-GL/2, PCL 3 Win
Print languages (optional) – Adobe PostScript 3, Adobe PDF 1.7, TIFF, JPEG (with PS/PDF upgrade)
Remote management – HP Partner Link, HP Embedded Web Server, HP Web Jetadmin

Connectivity
Interfaces  – Gigabit Ethernet (1000Base-T), USB 2.0 host
Printing paths – HP SmartStream software (optional), HP PageWide XL print drivers (PDF, HP-GL/2, and PCL3)

Dimensions (W x D x H)
Printer – 1955 x 2041 x 1637 mm
High-capacity stacker: 1430 x 1280 mm, height adjustable according to printer version
Shipping – 2257 x 1040 x 1595 mm

Printer Weight
Printer – 620 kg
Shipping – 744 kg
High-capacity Stacker – 120 kg (265 lb)

Power
Consumption – 0.29 kW (typical); 0.9 kW (max printing); 100 W (ready); <18 W (sleep)
Requirements – Input voltage (auto ranging) 200-240 V (±10%), 50/60 Hz (±3 Hz), 5 A
