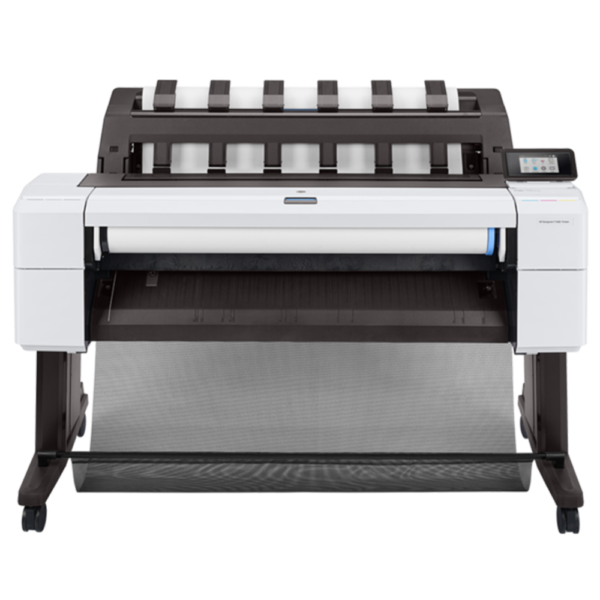

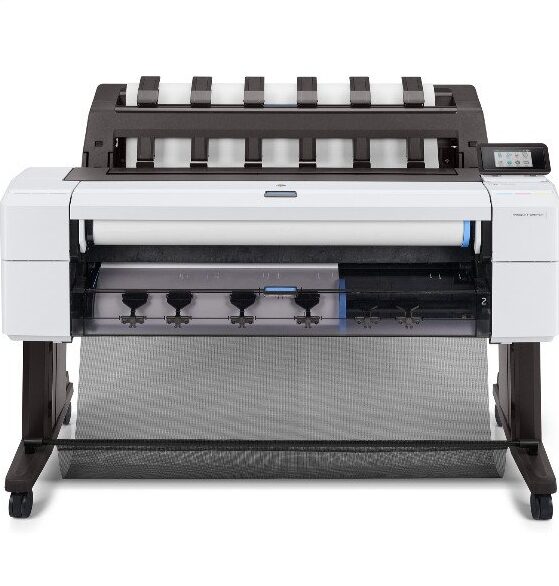

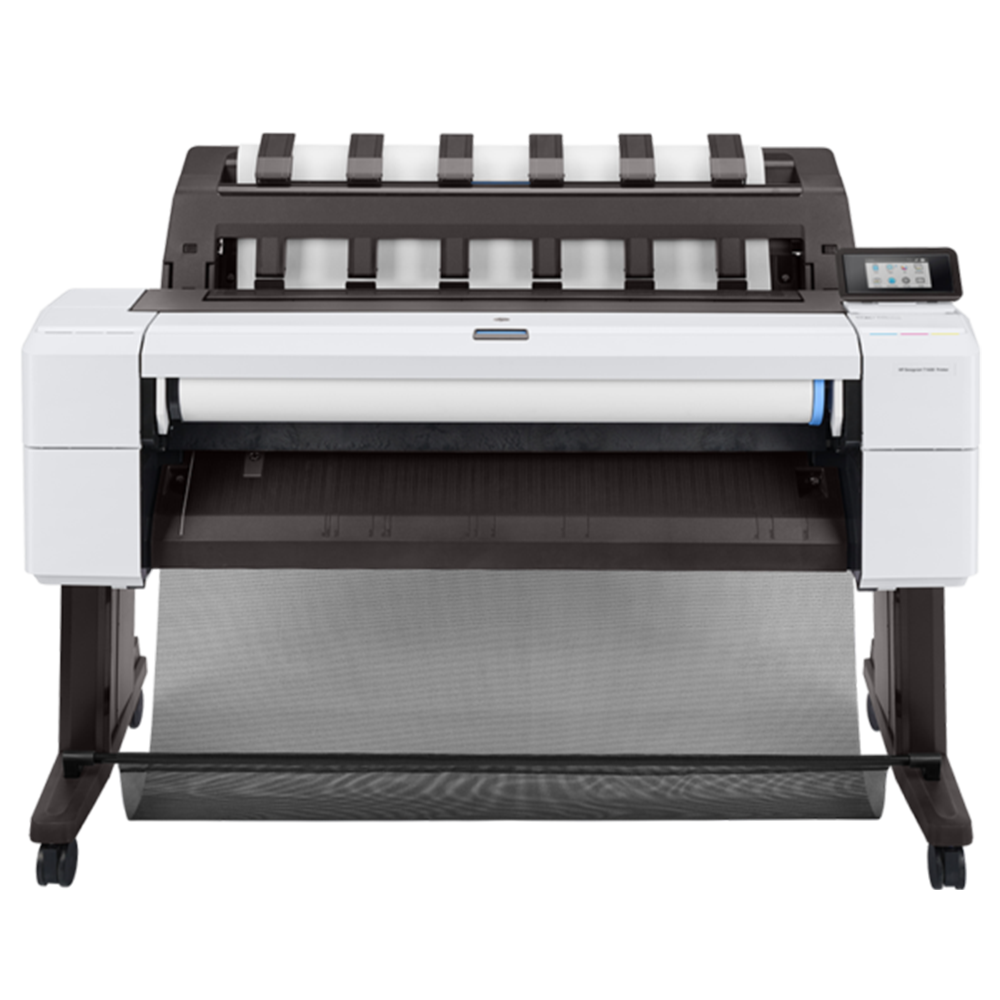

HP DesignJet T1600 36-in Printer

Print

Print speed – 180 D/hr, 19.3 sec/D (180 A1/hr, 19.3 sec/A1 )
Print resolution – Up to 2400 x 1200 optimized dpi
Technology – HP Thermal Inkjet
Margins – Roll: 0.12 x 0.12 x 0.12 x 0.12 in (3 x 3 x 3 x 3 mm), Sheet: 0.12 x 0.87 x 0.12 x 0.12 in (3 x 22 x 3 x 3 mm)
Ink types – Dye-based (C, M, Y, pK, G); pigment-based (mK)
Ink cartridges – 6 (C, M, Y, G, pK, mK)
Printheads – 1 universal printhead
Line accuracy – ±0.1%
Minimum line width – 0.0008 in (0.02 mm) (PDF addressable @ 1200 dpi)

Media

Handling – Sheet feed, front-loading roll feed, roll switching , integrated 100 page output stacker, media bin, automatic horizontal cutter
Sheet size – 210 x 279 to 914 x 1219 mm
Roll size – 11 to 36 in (279 to 914 mm)
Grammage – 60 to 328 g/m²

Memory

128 GB (file processing) ; 500 GB self-encrypting Hard disk

Connectivity

Interfaces   Gigabit Ethernet (1000Base-T), supporting the following standards: TCP/IP, BootP/DHCP (IPv4 only), DHCPv6, TFTP (IPv4 only), SNMP (v1, v2c, v3), Apple Bonjour Compatible, WS Discovery, Embedded Web Server (HTTP, HTTPS), IPsec, SMTP (email), Raw IP printing (9100), LPD, IPP, WS print, NTLM v2, SMBv3, SSL/TLS, 802.1X
authentication (LEAP, PEAP, EAP-TLS), DFS
Print languages (standard) – PostScript Printer: Adobe PostScript 3, Adobe PDF 1.7, HP-GL/2, HP-RTL, TIFF, JPEG, CALS G4; Non-PostScript
Printer: HP-GL/2, HP-RTL, TIFF, JPEG, CALS G4
Print languages (optional) – Non-PostScript Printer: Adobe PostScript 3, Adobe PDF 1.7
Mobile printing features – Direct print from mobile apps on iOS, Android, and Chrome OS; email printing with HP ePrint and HP Smart app for iOS and Android
Drivers – PostScript Printer: Raster, PostScript and PDF drivers for Windows, AirPrint for macOS; Non-PostScript Printer: Raster drivers for Windows, AirPrint for macOS

Dimensions (W x D x H)

Printer – 55 x 30 x 43 in (1390 x 760 x 1080 mm)
Shipping – 58.3 x 30.3 x 32 in (1480 x 770 x 810 mm)

Weight

Printer – Single-roll: 179 lb (81 kg), dual-roll: 187 lb (85 kg)
Shipping – Single-roll: 249 lb (113 kg), dual-roll: 256 lb (116 kg

Power

Consumption – 100 W (printing); < 36 W (ready); < 1 W (< 10 W with embedded Digital Front End) (sleep); 0.3 W (off)
Requirements – Input voltage (auto ranging) 100-240 V (±10%), 50/60 Hz (±3 Hz), 2 A max
