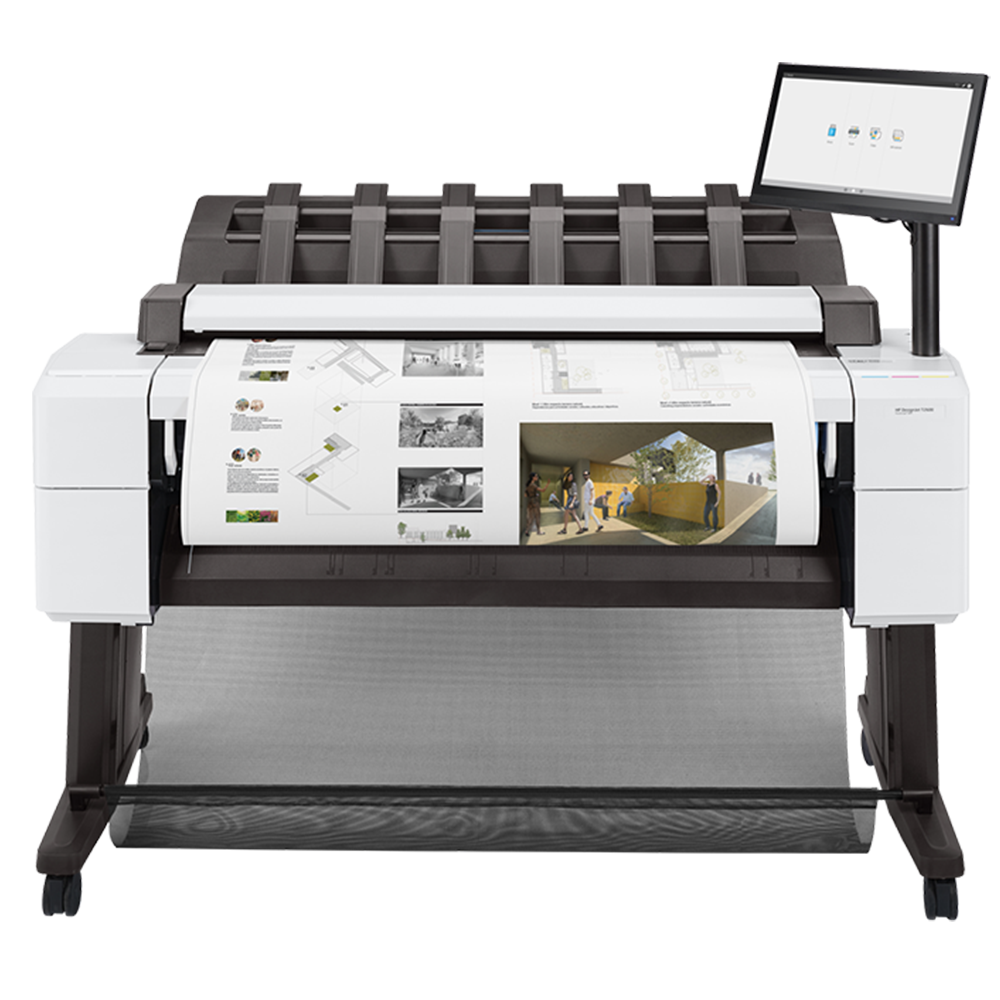

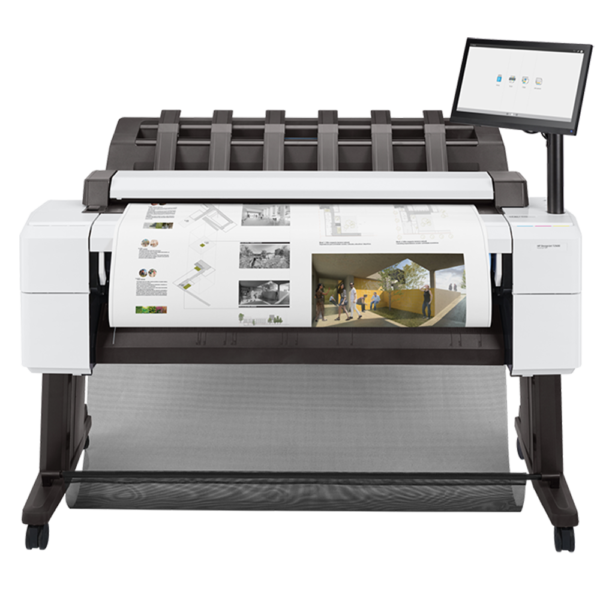

HP DesignJet T2600 36-in PostScript Multifunction Printer

Print

Print speed – 180 A1/D hr, A1/D in 19.3 sec on plain media
Print resolution – Up to 2400 x 1200 optimized dpi
Technology – HP Thermal Inkjet
Margins – Roll: 3 x 3 x 3 x 3 mm (0.12 x 0.12 x 0.12 x 0.12 in), Sheet: 3 x 22 x 3 x 3 mm (0.12 x 0.87 x 0.12 x 0.12 in)
Ink types – Dye-based (C, M, Y, pK, G); pigment-based (mK)
Printheads – 1 universal printhead
Line accuracy – ±0.1%
Minimum line width – 0.0008 in (0.02 mm) (PDF addressable @ 1200 dpi)

Multifunction capabilities ultifunction capabilities

Scan speed – Scan: Up to 3 in/sec (7.62 cm/sec) color at 200 dpi, up to 10 in/sec (25.4 cm/sec) grayscale at 200 dpi
Copy: Up to 6 in/sec (15.24 cm/sec) color at 200 dpi, up to 10 in/sec (25.4 cm/sec) grayscale at 200 dpi
Scan resolution – Up to 600 dpi
Maximum scan size – Maximum scan width JPEG-36 x 315 in (914 x 8000 mm); TIFF-24 x 590.5 in (610 x 15,000 mm); PDF-36 x 315 in (914 x 8000 mm)
Thickness – 0.03 in (0.8 mm)
Scan format – JPEG, TIFF and multipage TIFF, PDF and multipage PDF
Scan destinations – USB, shared network folder, printer HDD, email

Media

Handling – Sheet feed, front-loading roll feed, roll switching , integrated 100 page output stacker, media bin, automatic horizontal cutter
Scanner: straight-through scan paper path for sheet and cardboard originals
Sheet size – 8.3 x 11 to 36 x 48 in (210 x 279 to 914 x 1219 mm)
Roll size – 11 to 36 in (279 to 914 mm) holds up to 300ft
Standard sheets – A4, A3, A2, A1, A0 (A, B, C, D, E)
Grammage – 60 to 328 g/m²
Thickness – Up to 0.5 mm (19.7 mil)

Applications

Line drawings; Maps; Orthophotos; Presentations; Renderings

Memory

128 GB (file processing)

Hard disk

500 GB self-encrypting

Connectivity

Interfaces – Gigabit Ethernet (1000Base-T), supporting the following standards: TCP/IP, BootP/DHCP (IPv4 only), DHCPv6, TFTP (IPv4 only), SNMP (v1, v2c, v3), Apple Bonjour Compatible, WS Discovery, Embedded Web Server (HTTP, HTTPS), IPsec, SMTP (email), Raw IP printing (9100), LPD, IPP, WS print, NTLM v2, SMBv3, SSL/TLS, 802.1X authentication (LEAP,
PEAP, EAP-TLS), DFS
Print languages (standard) – PostScript Printer: Adobe PostScript 3, Adobe PDF 1.7, HP-GL/2, HP-RTL, TIFF, JPEG, CALS G4
Print languages (optional) – Adobe PostScript 3, Adobe PDF 1.7
Printing paths – Direct printing from USB flash drive, print from network shared folder, email printing, HP driver for Windows, HP Print Service for Android, Apple AirPrint driver for MacOS and for iOS, HP Print for Chrome OS, HP Click, HP Smart App for iOS and Android
Drivers – PostScript Printer: Raster, PostScript and PDF drivers for Windows, AirPrint for macOS

Security feature

HP Secure Boot, Whitelisting, TPM, Role Based Access Control, LDAP and Kerberos authentication, SNMPv3, HTTPS, Secure-IPP, IPsec/Firewall, Certificates management, 802.1X, TLS 1.0/1.1/1.2, HP Web Jetadmin compatible, HP JetAdvantage Security Manager compatible, Secure Disk erase (DoD 5220.22-M), Secure File erase, self-encrypting HDD, encrypted PIN printing, Syslog security logging.

Dimensions (W x D x H)

Printer – 55 x 30 x 49 in (1390 x 760 x 1240 mm)
Shipping – 58.3 x 30.3 x 32 in (1480 x 770 x 810 mm)

Weight

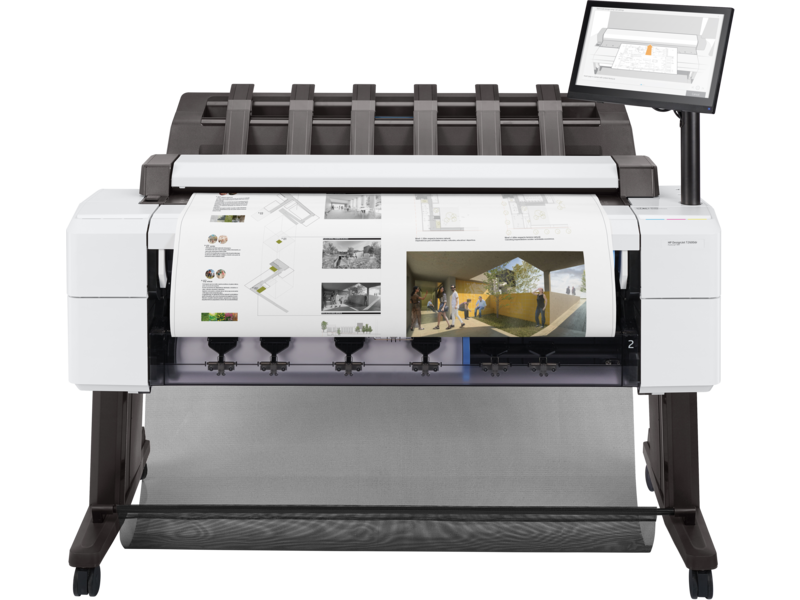

Printer – Single-roll: 229 lb (104 kg), dual-roll: 240 lb (109 kg)
Shipping – Single-roll: 300 lb (136 kg), dual-roll: 306 lb (139 kg)

Power

Consumption – 120 W (printing); < 36 W (ready); < 1 W (< 10 W with embedded Digital Front End) (sleep); 0.3 W (off)
Requirements – Input voltage (auto ranging) 100-240 V (±10%), 50/60 Hz (±3 Hz), 2 A max
