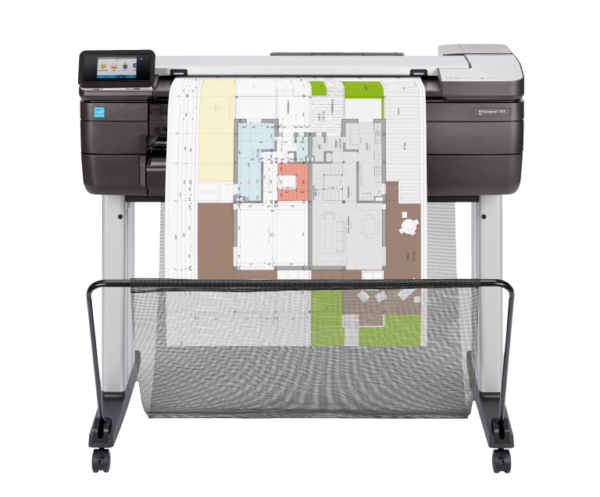

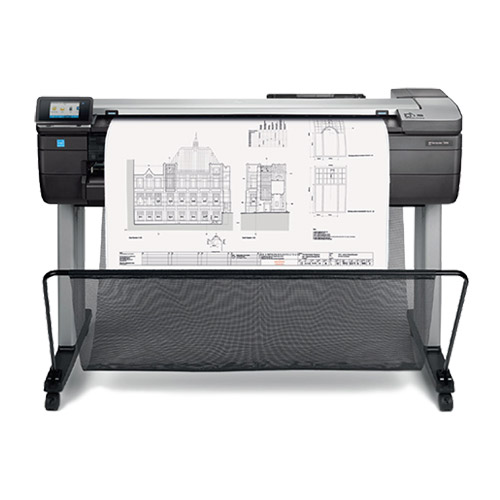

HP DesignJet T830 Multifunction Printer

Print

Line drawings –  25 sec/page on A1/D, 82 A1/D prints per hour
Print resolution – Up to 2400 x 1200 optimized dpi
Margins (top x bottom x left x right) – Roll: 5 x 5 x 5 x 5 mm (0.2 x 0.2 x 0.2 x 0.2 in), Sheet: 5 x 5 x 5 x 5 mm (0.2 x 0.2 x 0.2 x 0.2 in)
Ink types – Dye-based (C, M, Y); pigment-based (mK)
Printheads – 1 (C, M, Y, mK)
Line accuracy – +/- 0.1%8
Minimum line width – 0.02 mm (0.0008 in) (HP-GL/2 addressable)
Guaranteed minimum line width – 0.07 mm (0.0028 in) (ISO/IEC 13660:2001(E)

Media

Handling – Sheet feed, roll feed, input tray, media bin, automatic cutter
Size – Rolls: 279 to 914 mm (11 to 36 in), Sheets: 210 x 279 to 914 x 1897 mm (8.3 x 11 to 36 x 74.7 in), Standard sheets: A4, A3, A2, A1, A0 (A, B, C, D, E)
Thickness – Up to 0.3 mm (11.8 mil)

Scan

Scan speed – Color: up to 3.81 cm/sec (1.5 in/sec), Grayscale: up to 11.43 cm/sec (4.5 in/sec)
Scan/copy resolution – 600 dpi
Maximum scan – Size: 914mm x 2.77m (36x109in), Thickness: 0.8 mm (0.03 in)

Applications

Line drawings, Renderings, Presentations

Memory

1GB

Connectivity

Interfaces(standard) – Gigabit Ethernet (1000Base-T), Wi-Fi, Hi-Speed USB 2.0 certified connector
Print languages (standard) – HP-GL/2, HP-RTL, TIFF, JPEG, CALS G4, HP PCL 3 GUI, URF
Printing paths – Windows and Mac printer drivers, Apple AirPrint driver, print from USB pen drive
Mobile printing capability features – Wi-Fi Direct and local Wi-Fi connectivity to enable mobile printing and scaning via HP ePrint, Apple AirPrint™ and HP All-in-One printer remote App. Supports printing from most smartphones and tablets using these operating systems: Android, iOS
Drivers (included) – HP-GL/2, HP-RTL drivers for Windows; HP PCL 3 GUI driver for Mac OS X and Windows

Dimensions (W x D x H)

Printer – 1403 x 629 x 1155 mm (55.2 x 24.8 x 45.5 in)
Shipping – 1578 x 575 x 646 mm (62.5 x 22.6 x 25.4 in)

Weight

Printer – 62.5 kg (137.8 lb)
Shipping – 85 kg (187.4 lb)

Power consumption

35 watts (printing), 3.5 watts (sleep), 0.2 watts (standby)
Input voltage (auto ranging): 100 to 240 VAC (+/- 10%), 50/60 Hz (+/- 3 Hz), 1.2 A max
