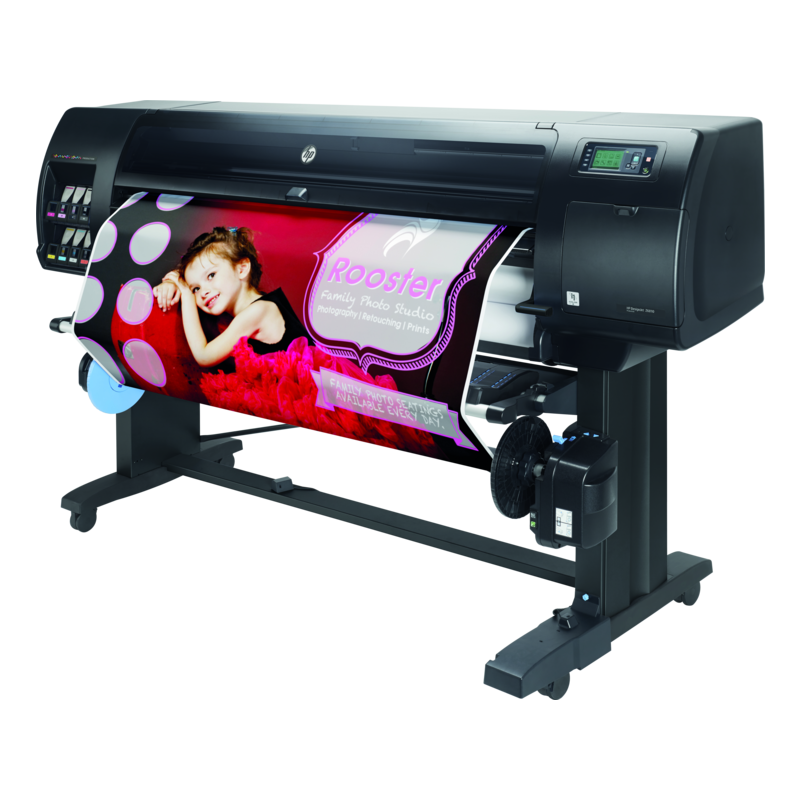

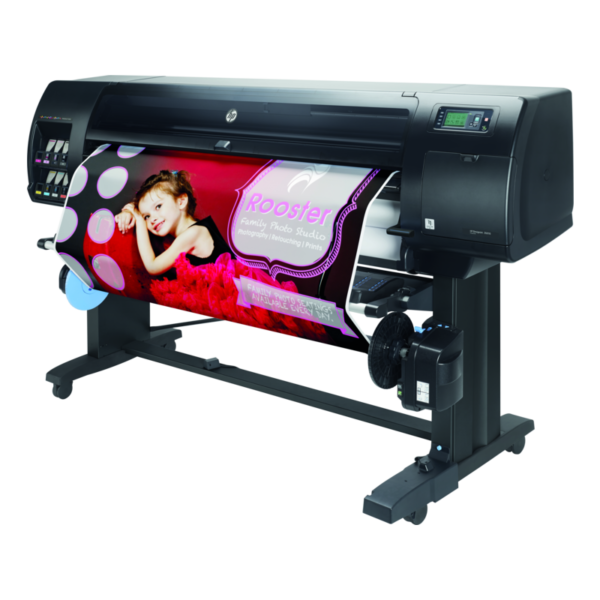

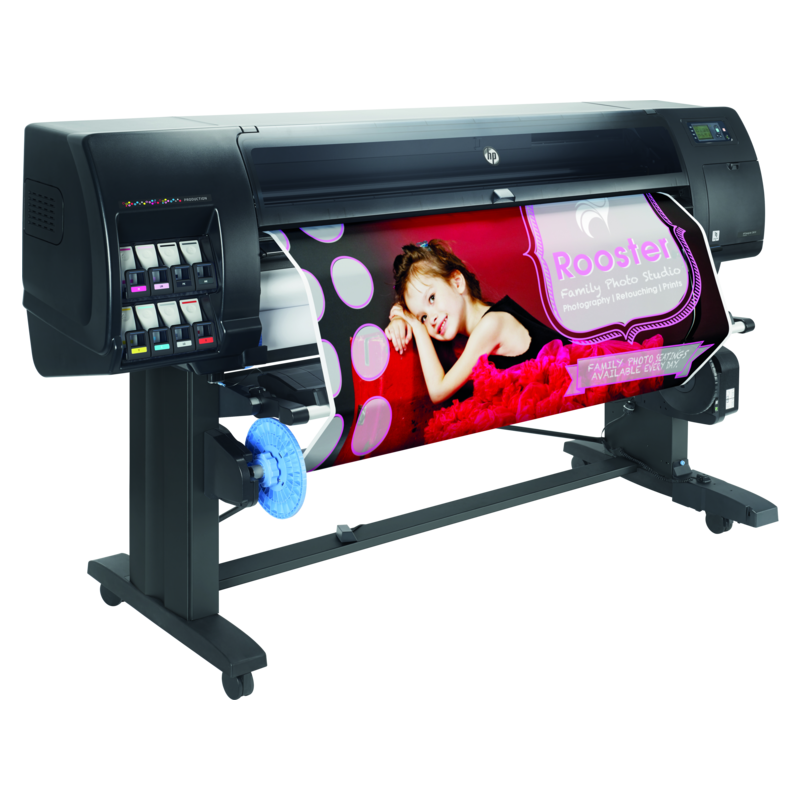

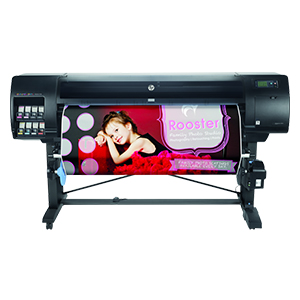

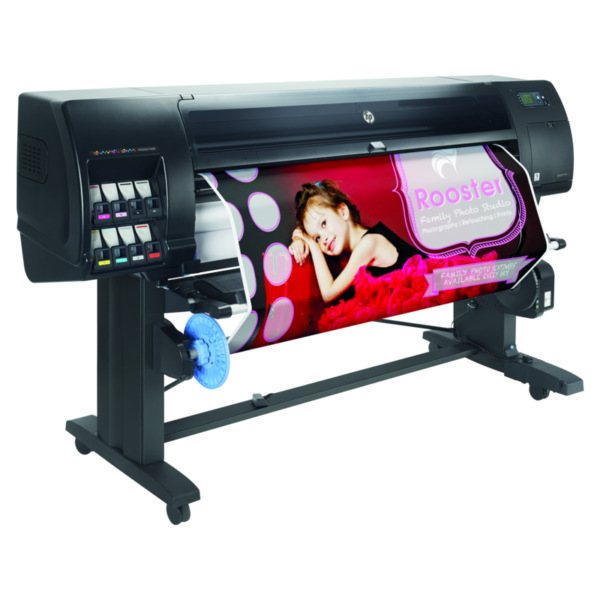

HP Designjet Z6810 Production Printer

Print

Maximum print speed 140 m²/hr (1500 ft²/hr) on plain media
Color images – Normal: 1.5 min/page on A1/D or up to 283 ft²/hr (26.3 m²/hr) on coated media
Best: 3.2 min/page on A1/D or up to 141 ft²/hr (13.1 m²/hr) on glossy media
Print resolution – Up to 2400 x 1200 optimized dpi
Technology – HP Thermal Inkjet
Margins – 0.2 x 0.2 x 0.2 x 0.2 in (5 x 5 x 5 x 5 mm)
Ink types – Pigment-based
Ink cartridges – 8 (cyan, magenta, yellow, matte black, photo black, chromatic red, light gray, light magenta)
Printheads – 8 (cyan, magenta, yellow, matte black, photo black, chromatic red, light gray, light magenta)

Image quality

Color accuracy – Media < 1.25 dE2000, 95% of colors < 2.75 dE2000
Short term color stability – < 1 dE2000 less than 5 minutes4
Long term print-to-print repeatability – Average < 0.5 dE2000, 95% of colors < 1.25 dE2000
Maximum optical density – 4.5 L* min/2.31 D

Media

Handling – Roll feed, automatic horizontal cutter, media bin , take-up reel
Roll size – 42-in: 11 to 42 in; 60-in: 11 to 60 in; (42-in: 280 to 1067 mm; 60-in: 280 to 1524 mm)
Grammage – Up to 460 g/m²
Thickness – Up to 22 mil (Up to 0.6 mm)

Application

Exhibition and event graphics; Graphics design; Indoor posters; Layouts and comps; Light
boxes – paper; Line drawings; Maps; Office Graphics; Orthophotos; Photo maps; Point
of sale/display; POP/POS; Posters; Presentations; Renderings; Schematics; Technical
presentations

Memory

64 GB (virtual); 500 GB hard disk

Connectivity

Interfaces – Gigabit Ethernet (1000Base-T), EIO Jetdirect accessory slot
Print languages (standard) – HP-GL/2, HP-RTL, CALS G4
Print languages (optional) – Adobe PostScript 3, Adobe PDF 1.7, TIFF, JPEG
Drivers (included) – Raster drivers for Windows and macOS; PostScript drivers for Windows and macOS with optional PostScript/PDF Upgrade Kit

Security features

SNMPv3, Control Panel lock levels, Certificates management, IPsec, SSL, Secure file erase,
Secure disk erase

Dimensions (W x D x H)

Printer- 42-in: 77.5 x 27.2 x 53.9 in (1970 x 690 x 1370 mm)
– 60-in: 95.7 x 27.2 x 53.9 in (2430 x 690 x 1370 mm)
Shipping- 42-in: 89.8 x 28.9 x 47.2 in (2280 x 735 x 1200 mm)
– 60-in: 105.6 x 29.5 x 47.2 in (2684 x 750 x 1200 mm)

Weight

Printer – 42-in: 271 lb (123 kg); 60-in: 419 lb (190 kg)
Shipping – 42-in: 390.2 lb (177 kg); 60-in: 489.4 lb (222 kg)

Power

Consumption – 270 watts (printing); < 48 watts (ready); < 5.3 watts (sleep); <0.3 watts (off)
Requirements – Input voltage (auto ranging): 100 – 127 V (±10%), 5 A; 220 – 240 V (±10%), 3 A; 50/60 Hz (±3 Hz)
