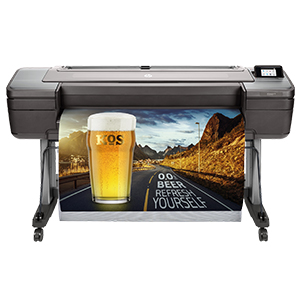

HP Designjet Z6 PostScript Printer

Print

Max print speed – 866 ft²/hr (80.5 m²/hr ) on plain media
Color images – Normal: 202 ft²/hr (18.8 m²/hr ) on coated media
Best: 104 ft²/hr (9.7 m²/hr) on glossy media
Print resolution – Up to 2400 x 1200 optimized dpi
Technology – HP Thermal Inkjet
Margins – Roll: 0.2 x 0.2 x 0.2 x 0.2 in (borderless on select media, or on all media with V-Trimmer) (5 x 5 x 5 x 5 mm (borderless on select media, or on all media with V-Trimmer)
Sheet: 0.2 x 0.67 x 0.2 x 0.2 in (5 x 17 x 5 x 5 mm)
Ink types – Pigment-based
Ink cartridges – 6 (cyan, magenta, yellow, matte black, photo black, chromatic red)
Ink drop – 7/3 pl dual-drop weight (M, C, PK); 6 pl single-drop weight (Y, CR, MK)
Printheads – 3 universal printheads (valid for all colors)
Line accuracy – ±0.1%5
Minimum line width – 0.0008 in (0.02 mm) (PDF addressable @ 1200 dpi)
Guaranteed minimum line width – 0.0031 in (0.08 mm) (ISO/IEC 13660:2001(E)

Image quality

Short-term color stability – < 1 dE2000 in less than 5 minutes
Long term print-toprint repeatability – Average < 0.5 dE2000, 95% of colors < 1.4 dE2000
Maximum optical density – 4 L* min/2.5 D

Media

Handling – Single-roll: Roll feed, top sheet feed, media output bin, automatic horizontal cutter; Dual-roll: Two automatic roll feeds, smart roll-switching, top sheet feed, media output bin, automatic horizontal cutter and vertical trimmer (cuts all HP Z-series printer-qualified media, including most canvas)
Sheet – size 24-in: 8.3 x 11 to 24 x 66 in (210 x 279 to 610 x 1676 mm)
44-in: 8.3 x 11 to 44 x 66 in (210 x 279 to 1118 x 1676 mm)
Roll – size 24-in: 11 to 24-in; 44-in: 11 to 44-in; (24-in: 279 to 610-mm; 44-in: 279 to 1118-mm)
Standard sheets – 24-in: A, B, C, D; 44-in: A, B, C, D, E; (24-in: A4, A3, A2, A1; 44-in: A4, A3,A2, A1, A0)
Grammage – 80 to 500 g/m²
Thickness – Up to 31.5 mil (Up to 0.8 mm)

Applications

Banners; Exhibition and event graphics; Light boxes – film; Maps; Orthophotos; Point of sale/
display; Posters

Memory

128 GB (virtual) ; 500 GB self-encrypting hard disk

Connectivity

Interfaces – Ethernet, Fast Ethernet, Gigabit Ethernet, 10/100/1000Base-T Ethernet (802.3, 802.3u, 802.3ab); USB Type-A host port
Print languages (standard) – Adobe PostScript 3, Adobe PDF 1.7, TIFF, JPEG, CALS G4, HP-GL/2, HP-RTL
Mobile printing features – Direct print from mobile apps for iOS, Android and Chrome OS; email rinting with HP ePrint and HP Smart app for iOS and Android.
Drivers – Raster and PostScript drivers for Windows and macOS; PDF driver for Windows

Security features

HP Secure Boot, Whitelisting, Role Based Access Control, SNMPv3, HTTPS, Secure-IPP, IPsec/
Firewall, Certificates management, 802.1X, TLS 1.0/1.1/1.2, HP Web Jetadmin compatible, HP
JetAdvantage Security Manager compatible, Secure Disk erase (DoD 5220.22-M), Secure File
erase, self-encrypted HDD, PIN printing

Dimensions (W x D x H)

Printer – 24-in: 50.9 x 27.4 x 39.3 in (1293 x 695 x 998 mm);
44-in: 71 x 27.4 x 39.3 in (1802 x 695 x 998 mm)
Shipping – 24-in: 56.7 x 30.2 x 28.3 in (1440 x 766 x 718 mm);
44-in: 76.8 x 30.2 x 28.3 in (1950 x 766 x 718 mm)

Weight

Printer – 145-211 lb (66-96 kg)
Shipping – 214-291 lb (97-132 kg)

Power

Consumption – < 100 W (printing); < 32 W (ready); < 0.3 W (< 6.5 W with embedded Digital Front End) (sleep); 0.1 W (off)
Requirements – Input voltage (auto ranging): 100-240 V (±10%), 50/60 Hz (±3 Hz), 2 A max
